UNITED STATES NAVY (UNITED STATES OF AMERICA)

SUBMARINES

PERCH submarines (1936-1937)

Pompano 1937

No Name Yard No Builder Laid down Launched Comm Fate
SS176 Perch 23 Electric Boat, Groton 2.1935 9.5.1936 11.1936 sunk 3.3.1942
SS177 Pickerel 24 Electric Boat, Groton 3.1935 7.7.1936 1.1937 sunk 3.4.1943
SS178 Permit (ex-Pinna) 25 Electric Boat, Groton 6.1935 5.10.1936 3.1937 Naval Reserve TS 1.1947, stricken 7.1956
SS179 Plunger   Portsmouth N Yd 7.1935 8.7.1936 11.1936 Naval Reserve TS 5.1946, stricken 7.1956
SS180 Pollack   Portsmouth N Yd 10.1935 15.9.1936 1.1937 stricken 10.1946
SS181 Pompano   Mare Island N Yd, Vallejo 1.1936 11.3.1937 6.1937 sunk 8-9/1943



Displacement standard, t



Displacement normal, t

1330 / 1997

Length, m

89.2 wl 91.6 oa

Breadth, m

7.67

Draught, m

4.62

No of shafts

2

Machinery

SS176 - 179: 4 Winton diesel-generators / 2 electric motors

SS180: 4 Fairbank-Morse diesel-generators / 2 electric motors

S181: 4 Hoover, Owens, Rentschler diesel-generators / 2 electric motors

Power, h. p.

4300 / 2366

Max speed, kts

19.25 / 8

Fuel, t

diesel oil 373

Endurance, nm(kts) 10000 (10) / 42 (5)

Armament

1 x 1 - 76/50 Mk 17/18, 2 x 1 - 12.7/90, 6 - 533 TT (16, 4 bow, 2 stern)

Electronic equipment

QC, JK sonars

Complement

54

Diving depth operational, m

75



Project history: Designed on basis of Cachalot class submarines. Dimensions and displacement were notably increased, that allowed to install more powerful diesels and make engine room more spaciously (in comparison with very tight and inconvenient for the maintenance engine room on Cachalot). Abandoning from rigid connection of diesel with propeller shaft and transition to an electrical drive became an important innovation of this class also. Introduction of generators on diesel shafts was partly indemnified by abandoning from using of auxiliary diesel-generator serving only for battery recharging. New scheme ensured much more flexible machinery usage, allowing significant expedite process of recharging or to recharge battery almost on full speed. Advantage of diesel-electric gear was showed as in appreciable decrease in vibration. The special attention has been given to improvement of habitability conditions, in particular, for the first time they received air conditioners. Double-hulled.

Financing of building of this class was conducted within the limits of National Industrial Recovery Act accepted in 1933. There existed two detailed projects, developed by Bureau of construction (SS172 and 173) and Electric Boat (SS174 and 175).

6 more submarines were built under the FY1935 program. They differed from Porpoise, except usage of more powerful diesels, a little.

Modernizations: 1942, Pickerel, Permit: + 2 - 533 TT (ext stern, 18 torpedoes totally)

9.1942, Pompano: diesel-generators were replaced by Fairbank-Morse

1942 - 1943, all survived: CT was rebuilt; - 2 x 1 - 12.7/90; + 2 x 1 - 20/70 Mk 4, SD, SJ radars

1/1946, SS178: 8 - 533 TT (4 bow, 2 stern, 2 ext stern, 18), 1 x 1 - 76/50 Mk 11, 2 x 1 - 20/70 Mk 10, SD, SJ radars, QC, JK sonars

1/1946, SS179, 180: 6 - 533 TT (4 bow, 2 stern, 16), 1 x 1 - 76/50 Mk 11, 2 x 1 - 20/70 Mk 10, SD, SJ radars, QC, JK sonars

Naval service: Perch 1.3.1942 was damaged by DCs from Japanese destroyers Amatsukaze and Hatsukaze and 3.3.1942 scuttled E off Surabaya being additionally damaged by Japanese destroyer Yukikaze. Pickerel in April, 1943 was lost at N coast of Japan (most likely, 3.4.1943 at N coast of Honshu she was sunk by Japanese aircraft, destroyer Shirakami and auxillary patrol Bunzan Maru). Pompano was lost by unknown cause in August-September, 1943, probable off Honshu or Hokkaido, probably mined.

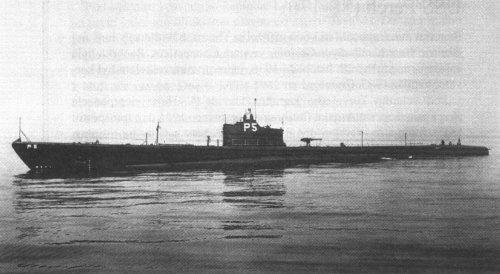

Perch 1937
