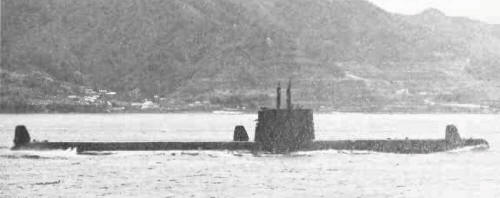

Darter 1963
Darter 1967
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| SS576 | Darter | 144 | Electric Boat, Groton | 10.11.1954 | 28.5.1956 | 20.10.1956 | stricken 6.1990 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1872 / 2372 |
|
Length, m |
81.7 wl 86.7 oa |
|
Breadth, m |
8.30 |
|
Draught, m |
5.10 |
|
No of shafts |
2 |
|
Machinery |
3 Fairbank Morse diesel-generators, 2 Elliott electric motors |
|
Power, h. p. |
3100 / 4700 |
|
Max speed, kts |
15.5 / 16 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 13500(10) / 144(3) |
|
Armament |
8 - 533 TT (6 bow Mk 54, 2 stern Mk 55, 26) |
|
Electronic equipment |
BPS-12 radar, BQS-4, BQR-2 sonars, BLR-1 ECM suite |
|
Complement |
83 |
|
Diving depth operational, m |
210 |
Project history: Improved version of the Tang class, with console controls. Two planned sisters Grayback and Growler were completes as strategic missile submarines.
Modernizations: late 1960s: + BQG-4 sonar
1960s: - BLR-1 ECM suite; + WLR-1 ECM suite
Naval service: No significant events.
Darter 1987
