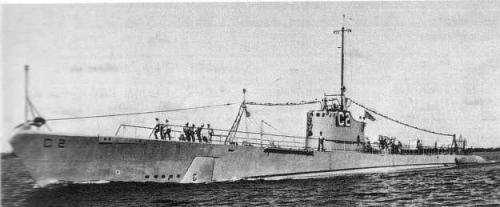

Cachalot 1940
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| SS170 | Cachalot | Portsmouth N Yd | 10.1931 | 19.10.1933 | 12/1933 | stricken 11.1945 | |
| SS171 | Cuttlefish | 17 | Electric Boat, Groton | 10.1931 | 21.11.1933 | 6.1934 | stricken 7.1946 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1120 / 1650 |
|
Length, m |
80.8 wl 82.9 oa |
|
Breadth, m |
7.54 |
|
Draught, m |
4.27 |
|
No of shafts |
2 |
|
Machinery |
2 MAN diesels / 2 electric motors |
|
Power, h. p. |
2770 / 1600 |
|
Max speed, kts |
17 / 8 |
|
Fuel, t |
diesel oil 333 |
| Endurance, nm(kts) | 9000 (12) / 50 (5) |
|
Armament |
1 x 1 - 76/50 Mk 17/18, 3 x 1 - 12.7/90, 6 - 533 TT (16, 4 bow, 2 stern) |
| Electronic equipment |
QC, JK sonars |
|
Complement |
51 |
|
Diving depth operational, m |
75 |
Project history: Occurrence of these boats with small (to the American measures) displacements speaks by several reasons. First, accepted by the London Naval conference of 1930 limitation assigned on displacement of submarines left only one way for increase in number of these ships: reduction of their dimensions. Secondly, the comparison of Dolphin with from one of the best German submarine of First World War U135 appeared not in favour of the American submarine which at appreciable bigger displacement exceeded German sub only in an endurance, yielding on the majority of remaining characteristics.
Taking into account these factors the project of new submarine, with German "roots" was ready, but fulfilled on new technological level, in particular, with wide usage of welding instead of traditional riveting. Double-hulled, diesels driven shafts directly.
Though a number of experts also responded Cachalot as not quite successful ship, she became ancestor of the majority later fleet submarines of the USN.
Modernizations: 1938, both: diesels were replaced by more powerful ones (3100hp)
1940s, both: + SD, SJ radars
1.1946, SS171: 6 - 533 TT (4 bow, 2 stern, 16), 1 x 1 - 76/50 Mk 11, 3 x 1 - 12.7/90, SD, SJ radars, QC, JK sonars
Naval service: No significant events.
Cuttlefish 1930s
