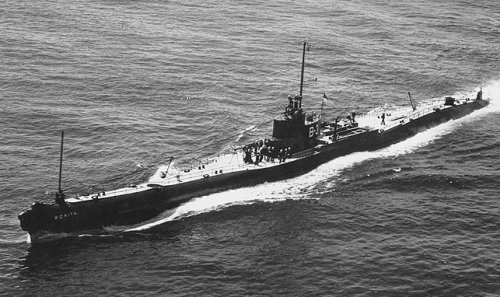

Bonita 1940
Bass 1943
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| SF4, 7.1931- SS163 | V1, 3.1931- Barracuda | Portsmouth N Yd | 10/1921 | 17.7.1924 | 10.1924 | sold 11.1945 | |
| SF5, 7.1931- SS164 | V2, 3.1931- Bass | Portsmouth N Yd | 10.1921 | 27.12.1924 | 9.1925 | stricken 3.1945 | |
| SF6, 7.1931- SS165 | V3, 3.1931- Bonita | Portsmouth N Yd | 11.1921 | 9.6.1925 | 5.1926 | stricken 3.1945 |
|
Displacement standard, t |
|
|
Displacement normal, t |
2119 / 2506 |
|
Length, m |
99.1 wl 102.0 oa |
|
Breadth, m |
8.41 |
|
Draught, m |
4.62 |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer diesels + 2 Sulzer diesel-generators / 2 electric motors |
|
Power, h. p. |
6200 / 2400 |
|
Max speed, kts |
18.7 / 9 |
|
Fuel, t |
diesel oil 364 |
| Endurance, nm(kts) | 12000 (11) / 10 (8) |
|
Armament |
1 x 1 - 127/51 Mk 9, 6 - 533 TT (12, 4 bow, 2 stern) |
| Electronic equipment | SC sonar |
|
Complement |
85 |
|
Diving depth operational, m |
60 |
Project history: Ocean-going submarines, project was developed from last series of S class. Submarines were built within the limits of the program of 1916.
Double-hulled. Machinery was of combined type: besides main propulsion diesels with a direct drive there were also two diesels-generators, used both for battery recharge, and for cruise speed using electric drive.
Despite appreciable high endurance and a high speed, in comparison with S class submarines, these ships because of bad manoeuvrability were considered mediocre enough. In a beginning of war it was supposed to rebuild them to transports, however this project remained.
Modernizations: 1928, all: - 1 x 1 - 127/51; + 1 x 1 - 76/50 Mk 17/18
1940, all: Sulzer diesel-generators were replaced by more powerful MAN; - SC sonar; + WBA sonar
1943, all: - 1 x 1 - 76/50; + 2 x 1 - 20/70 Mk 4, SD, SJ radars
Naval service: Bass in August, 1942 was badly damaged as result of fire in engine room.
Bonita
