UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT

WESTPAC EXPRESS theater logistic vessel (2001)

Westpac Express 2010

No Name Yard No Builder Laid down Launched Comm Fate
HSV4676 Westpac Express   Austal, Fremantle, Australia     7.2001 in service (2019)



Displacement standard, t

1300

Displacement full, t

2050

Length, m

86.0 pp 101.0 oa

Breadth, m

26.7

Draught, m

4.20

No of shafts

4 waterjets

Machinery

4 Caterpillar 3618 diesels

Power, h. p.

38600

Max speed, kts

40

Fuel, t

diesel oil 330

Endurance, nm(kts) 1500(35)

Armament

none

Military load 950 passengers, 100 vehicles

Electronic equipment

2x radars

Complement



Project history: 750t deadweight. Chartered for two months in July 2001 but contract was extended. Used for transporting of Marine Corps personnel between Okinawa and Japanese ports. HSV4676 is the MSC accounting number, Westpac Express doesn't have an official USN hull number.

    Wave-piercing catamaran-hulled design. Can carry up to 550t of vehicle cargo in addition to marines. Some 100 HMMWV vehicles or 251 automobiles can be stowed on the mezzanine deck, with 4 trucks and up to 12 UH-1-sized helicopters on the main deck. The ship may not be suitable for combat due to a lack of damaged stability and battle-control systems.

Modernizations: None.

Naval service: No significant events.

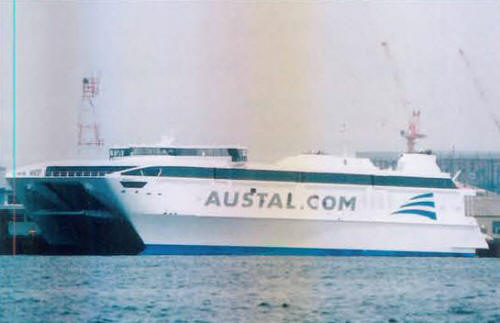

Westpac Express 2001
