UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT

LST1153 tank landing ships (1947-1949)

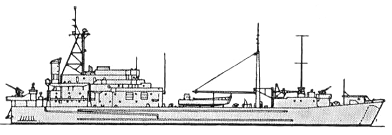

LST1153 1955

Talbot County 1963

Tallahatchie County 1968

No Name Yard No Builder Laid down Launched Comm Fate
LST1153 7/1955- Talbot County   Boston N Yd, Charlestown 19.7.1945 24.4.1947 3.9.1947 stricken 5.1973
LST1154 7.1955- Tallahatchie County   Boston N Yd, Charlestown 4.8.1945 19.7.1946 24.5.1949 advance aviation base ship AVB2 2.1962



Displacement standard, t

2250

Displacement full, t

6000

Length, m

116.4

Breadth, m

16.5

Draught, m

4.39

No of shafts

2

Machinery

2 sets Westinghouse / General Electric geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

6000

Max speed, kts

14

Fuel, t

oil

Endurance, nm(kts) 10000(10)

Armament

2 x 1 - 127/38 Mk 30, 2 x 2 - 40/60 Mk 1, 2 x 1 - 20/70 Mk 10

Military load 20 tanks or 500t of cargo, 175 marines

Electronic equipment

presumably SU radar

Complement

181

Project history: Not very successful attempt to increase the speed of LST, using steam turbine machinery.

Modernizations: None.

Naval service: No significant events.

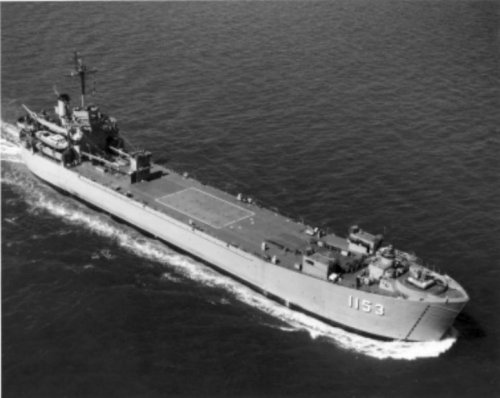

LST1153
