UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT

SWIFT high speed vessel (2003)

Swift 2010

No Name Yard No Builder Laid down Launched Comm Fate
HSV2 Swift (ex-Incat 061)   INCAT, Hobart, Australia     12.8.2003 returned 7.2015



Displacement standard, t



Displacement full, t

1875

Length, m

92.0 wl 97.2 oa

Breadth, m

26.60

Draught, m

3.43

No of shafts

4 waterjets

Machinery

4 Ruston Paxman 16RK270 diesels

Power, h. p.

37982

Max speed, kts

47 light, 35 with 500t of cargo

Fuel, t

diesel oil 160

Endurance, nm(kts) 4000(20)

Armament

provision for 1 x 6 - 20/76 Mk 15 Block 1B

Military load 102 passengers on berth or 250 seated, 500 t of cargo

Electronic equipment

2x Kelvin Hughes radars

Complement

100

Project history: Leased  in October 2002 by MSC and delivered 15.8.2003, under long-term charter since 2008. Modified commercial vehicle and personnel ferry available for various logistic support and transportation duties. This type is inherently unsuitable for high-intensity combat roles due to basic configuration, lack of damage control capability and lack of protection features.

    Had enclosure for two MH-60S helicopters and 24.7x15.2m flight deck. The stern ramp was capable of deploying M1 Abrams heavy tanks. Can carry 267 automobiles. Aluminium construction.

Modernizations: None.

Naval service: No significant events.

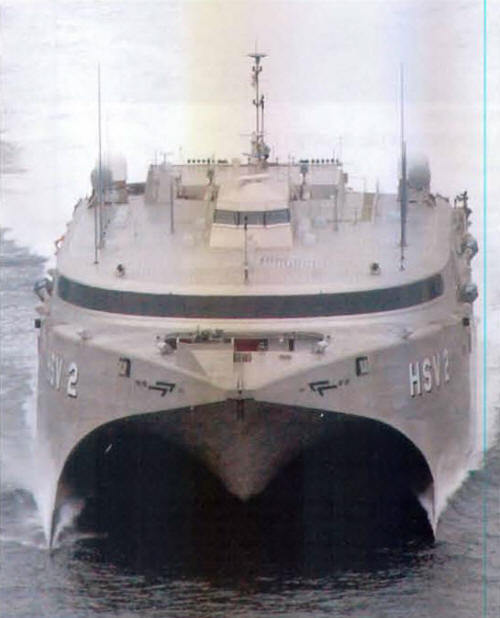

Swift 2004
