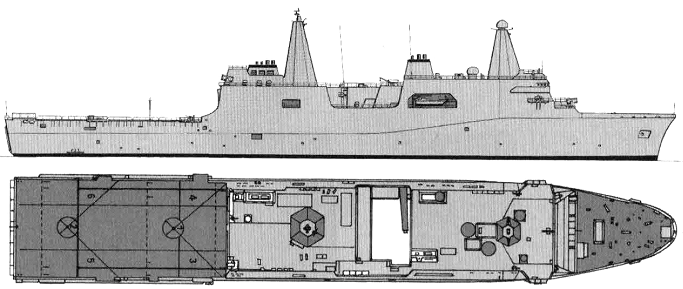

San Antonio 2010
No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
LPD17 | San Antonio | 2484 | Northrop Grumman Ship Systems, Avondale | 9.12.2000 | 12.7.2003 | 14.1.2006 | in service (2019) |
LPD18 | New Orleans | 2485 | Northrop Grumman Ship Systems, Avondale | 14.10.2002 | 11.12.2004 | 5.3.2007 | in service (2019) |
LPD19 | Mesa Verde | 2486 | Northrop Grumman Ship Systems Ingalls, Pascagoula | 25.2.2003 | 20.11.2004 | 15.12.2007 | in service (2019) |
LPD20 | Green Bay | 2487 | Northrop Grumman Ship Systems, Avondale | 7.8.2003 | 11.8.2006 | 24.1.2009 | in service (2019) |
LPD21 | New York | 2488 | Northrop Grumman Ship Systems, Avondale | 30.8.2004 | 19.12.2007 | 7.11.2009 | in service (2019) |
LPD22 | San Diego | 2631 | Northrop Grumman Ship Systems Ingalls, Pascagoula | 23.5.2007 | 7.5.2010 | 19.5.2012 | in service (2019) |
LPD23 | Anchorage | 2635 | Northrop Grumman Ship Systems, Avondale | 24.9.2007 | 12.2.2011 | 4.5.2013 | in service (2019) |
LPD24 | Arlington | 2665 | Northrop Grumman Ship Systems Ingalls, Pascagoula | 26.5.2008 | 23.11.2010 | 8.2.2013 | in service (2019) |
LPD25 | Somerset | 2606 | Northrop Grumman Ship Systems, Avondale | 11.12.2009 | 14.4.2012 | 1.3.2014 | in service (2019) |
LPD26 | John P. Murtha | 2614 | Northrop Grumman Ship Systems Ingalls, Pascagoula | 6.2.2012 | 30.10.2014 | 11.8.2016 | in service (2019) |
LPD27 | Portland | 2617 | Northrop Grumman Ship Systems Ingalls, Pascagoula | 20.5.2013 | 13.2.2016 | 14.12.2017 | in service (2019) |
LPD28 | Fort Lauderdale | Northrop Grumman Ship Systems Ingalls, Pascagoula | 13.10.2017 | 2020 | 2022 | building (2019) | |
LPD29 | Richard M. McCool Jr. | Northrop Grumman Ship Systems Ingalls, Pascagoula | 2019 | 2022 | 2024 | awarded (2019) |
Displacement standard, t |
19208 |
Displacement full, t |
25300 |
Length, m |
200.00 wl 208.5 oa |
Breadth, m |
31.9 |
Draught, m |
7.01 |
No of shafts |
2 |
Machinery |
4 Colt-Pielstick 16PC2.5 STC diesels |
Power, h. p. |
41600 |
Max speed, kts |
22 |
Fuel, t |
diesel oil |
Endurance, nm(kts) |
8000(18) |
Armament |
2 x 21 RAM SAM (42 RIM-116A), 2 x 1 - 30/80 Mk 46 Mod. 2, 4 x 1 - 12.7/90, 2 - 4 tiltrotors or helicopters (2 CH-53E or 4 AH-1/UH-1 or 4 CH-46E or 2 MV-22B) |
Military load |
2 LCAC or 1 LCU or 4 LCM(8) or 20 LVTP, 2 LCPL, 1 LCVP, 700 troops, vehicles |
Electronic equipment |
2x SPS-73, SPS-48E, SPQ-9B radars, IRST, Mk 46 E/O directors, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC decoy RL, 2x Mk 53 Nulka decoy RL, SLQ-49 decoy launcher, SLQ-25 Nixie torpedo decoy, SLX-1 torpedo defence system, ICDS, JMCIS, GCCSM, NTCSS, AADS KSQ-1, CEC USG-2 CCS |
Complement |
364 |
Project history: The class replaced the LKAs, LPDs, LSD36 class and Newport class LSTs. Intended for 40-years service. The docking well is about the size (75x20m) of that on the LPD4 class and can accommodate 2 LCAC or 1 LCU and 14 amphibious assault vehicles. The two-part stern gate covers an opening 23.8m wide by 10.7m high. There are two spots for helicopters of up to CH-53E size. Three AH-1Z or four CH-46E or one CH-53E or two MH-22 can be accommodated in hangar, ship can also support AV-8B Harrier VSTOL attackers. Cargo vilume is 963m³ with 2323m² of vehicle space on three decks and 708m³ of palletized ammunition cargo space. Ship can also has 1007m³ cargo ammunition magazines and 1196m³ tanks for JP-5 aviation fuel and 38m³ for cargo gasoline. Medical facilities include 24 beds, two operating rooms and space for additional 100 casualties. The hull is shaped to reduce radar cross-section, which is said to be 1% of that of the LPD4. Can carry two 7m and one 11m RIB-type ship's boats, can also additionally carry two special forces RIBs.
All have ACDS (Advanced Combat Direction System) Block I, JMCIS (Joint Maritime Command Information System), KSQ-1 AADS amphibious assault direction system, Mk 2 Ship Self-Defence System (SSDS), Global Command Control System Maritime (GCCSM), Naval Tactical Command Support System (NTCSS), and the Integrated Combat Direction System (ICDS).
Modernizations: future: + MFEW ECM suite
Naval service: No significant events.

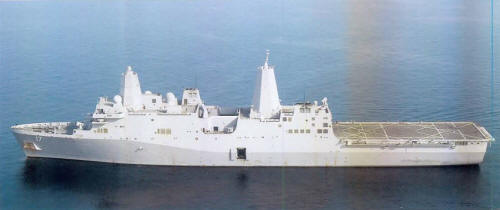

San Antonio 2008
