UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT

SUMTER amphibious personnel transports (1943-1944)

No Name Yard No Builder Laid down Launched Comm Fate
APA52 Sumter (ex-Iberville) 5 Gulf SB, Chickasaw 4.1942 4.10.1942 9.1943 stricken 4.1946
APA53 Warren (ex-Jean Lafitte) 6 Gulf SB, Chickasaw 4.1942 7.9.1942 8.1943 stricken 4.1946
APA54 Wayne (ex-Afoundria) 7 Gulf SB, Chickasaw 4.1942 6.12.1942 8.1943 stricken 4.1946
APA94 Baxter (ex-Antinous) 15 Gulf SB, Chickasaw 3/1943 19.9.1943 5.1944 stricken 4.1946



Displacement standard, t

8355

Displacement full, t

12775

Length, m

135.6 wl 142.9 oa

Breadth, m

19.2

Draught, m

7.09 full load

No of shafts

1

Machinery

1 set General Electric geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

6000

Max speed, kts

16.5

Fuel, t

oil 1235

Endurance, nm(kts)

13507(12)

Armament

2 x 1 - 127/38 Mk 12, 4 x 2 - 40/56 Mk 1.2, 10 x 2 - 20/70 Mk 4

Electronic equipment

presumably SF or SG or SH or SL or SO or SU radar
Military load

26 LCVP, 2 LCM(3), 1300 t of cargo, 1650 troops

APA52 by 1945: 2 LCM(6), 3 LCM(3), 15 LCVP, 1 LCPL, 1 LCPR, 1300 t of cargo, 1442 marines

APA94 by 1945: 3 LCM(3), 19 LCVP, 1 LCPL, 1 LCPR, 1400 t of cargo, 1730 marines

Complement

449

Project history: USN military transport vessels were sectioned into two groups: ÀÐ for transportation of troops and ÀÊ for carriage of goods and technics. The majority of them were built on the basis of standard types Ñ2, Ñ3 and Ñ4 and differed from usual cargo ships a little.

For delivery of troops and cargoes directly to a beaching place assault landing transport ships (ÀÐÀ and ÀÊÀ) served, which main difference from ÀÊ and ÀÐ consisted that they were extra equipped with disembarkation craft of LCVP, LCM and LCP (L) types; with their help delivery of people and cargoes to beach also was effected.

Originally similar ships were not outlined in own subclass and were registered as ÀÐ and ÀÊ. In February, 1943 reorganisation was done and assault transports have received indexation ÀÐÀ and ÀÊÀ.

Two ships of Doyen class, projected even on the eve of war for landing operations in Caribbean basin, became the first American assault military transports. The overwhelming majority of remaining ÀÐÀ and ÀÊÀ has been converted from merchant cargo and cargo-passenger vessels or constructed in hulls of standard cargo vessels built by the big series in days of war. An exception were specially projected as assault transports Gilliam (ÀÐÀ) and Artemis (ÀÊÀ) classes.

Besides the large landing transport ships of ÀÐÀ and ÀÊÀ classes, small landing parties and subversive groups were landed by fast landing transports (APD) converted from become outdated Wickes and Clemson classes destroyers and destroyer escorts of Buckley and Rudderow classes.

Sumter class transport were built in standard C2-S-E1 type hulls.

Modernizations: None.

1/1946: 2 x 1 - 127/38 Mk 30, 4 x 2 - 40/60 Mk 1, 10 x 2 - 20/70 Mk 24, SF or SG or SH or SL or SO or SU radar

Naval service: No significant events.

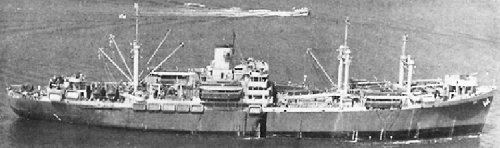

Warren
