Names |
TKL1 - 8 LCM(2)1909-1913 LCM(2)2084-2091 LCM(2)2254-2283 LCM(2)2910-2921 LCM(2)3701-3724 LCM(2)3791-3794 LCM(2)4573-4628 (147 built) |
|
Builders |
American Car & Foundry: TKL1-8 Higgins: LCM(2)3701-3710 |
|
Commissioned |
1941: TKL1-8 1942: LCM(2)1909-1913, 2084-2091, 2254-2283, 2910-2921, 3701-3724, 3791-3794, 4573-4628 |
|
Losses |
|
|
Transfers |
|
|
Discarding |
|
Displacement standard, t |
20 |
|
Displacement full, t |
32 |
|
Length, m |
14.6 |
|
Breadth, m |
4.04 |
|
Draught, m |
0.90 |
|
No of shafts |
2 |
|
Machinery |
|
|
Power, h. p. |
350 |
|
Max speed, kts |
8.5 |
|
Fuel, t |
|
|
Endurance, nm(kts) |
|
|
Armament |
|
|
Military load |
12 t of cargo |
|
Complement |
Project history: Landing craft, mechanized.
Modernizations: None
.Naval service: None.

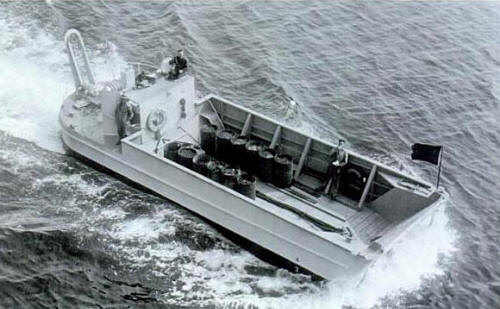

LCM(2)
