UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT



LCC(1) and LCC(2) landing craft, control (1943-1944)



Names

LCC(1/2)25470-25529 and 24 others (99 LCC(1) and LCC(2) built)

LCC(2)39044-39058

Builders

Albina Marine: LCC(1)25470-25496, LCC(2)39044-39058

Consolidated SB: LCC(1/2)25497-25529

Charleston N Yd: 24 LCC(1/2)

Commissioned

1943-1944: 99 units

Losses



Transfers



Discarding





Displacement standard, t



Displacement full, t

30

Length, m

17.1

Breadth, m

LCC(1): 4.14

LCC(2): 4.57

Draught, m

1.21

No of shafts

2

Machinery

2 diesels

Power, h. p.

450

Max speed, kts

13.5

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

3 x 2 - 12.7/90
Electronic equipment SO radar

Complement

14



Project history: Landing craft, control.

Modernizations: None.

Naval service: None.

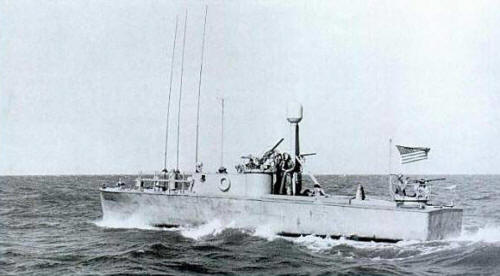

LCC(1)
