very similar view of LCAC80
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| LCAC100 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC101 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC102 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC103 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC104 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC105 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC106 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC107 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC108 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC109 | Textron, New Orleans | 11.2014 | 2020 | building (2018) |
|
Displacement standard, t |
101 |
|
Displacement full, t |
181 |
|
Length, m |
24.5 wl 28.0 oa |
|
Breadth, m |
13.3 wl 14.5 oa |
|
Draught, m |
1.42 at rest, loaded / 0 |
|
No of shafts |
2 shrouded airscrews + 4 centrifugal lift fans |
|
Machinery |
4 Rolls-Royce MT7 gas turbines (2 for propulsion, 2 for lift) |
|
Power, h. p. |
20000 |
|
Max speed, kts |
45 light, 35 loaded |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 7.6/92 |
| Electronic equipment | Furuno 2127 radar |
|
Military load |
70 t cargo, 26 troops |
|
Complement |
5 |
Project history: Planned replacement for LCAC with more powerful turbines. 74 units are planned to be commissioned in 2019-2031.
Modernizations: .
Naval service: .

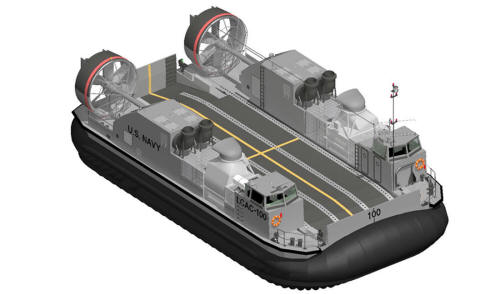

LCAC100
