UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT

BLUE RIDGE command ships (1970 - 1971)

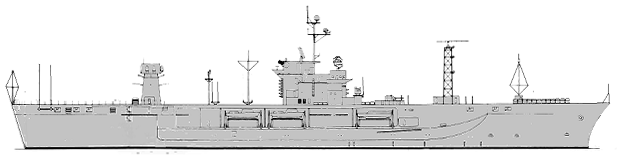

Blue Ridge 1970

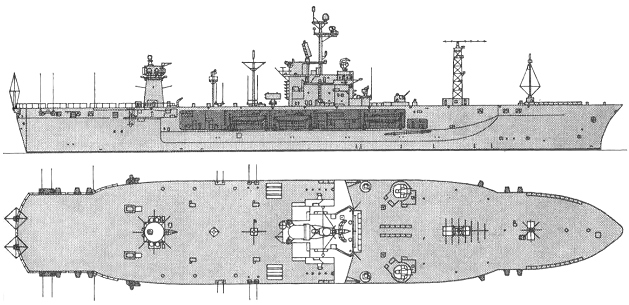

Blue Ridge 1979

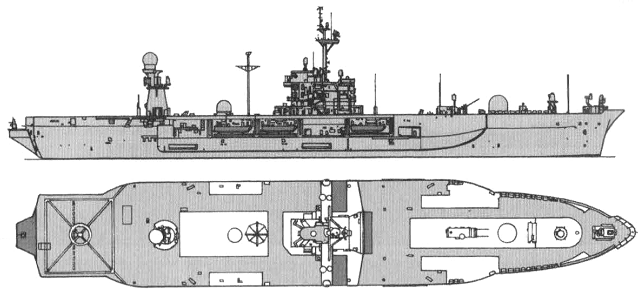

Blue Ridge 1990

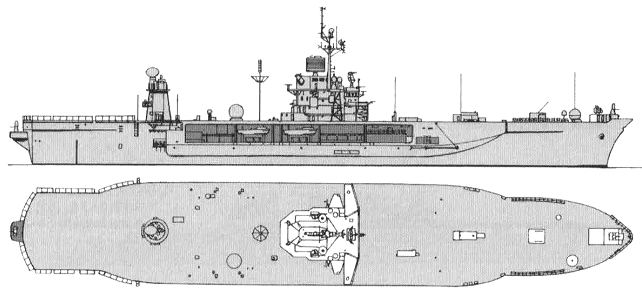

Blue Ridge 2000

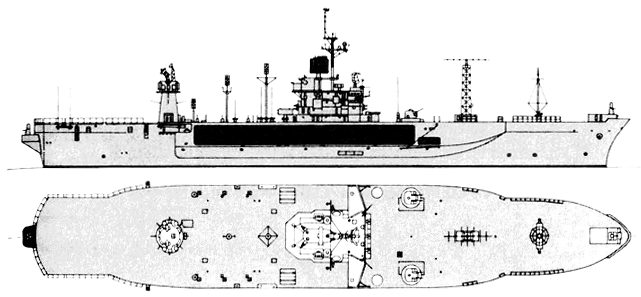

Blue Ridge 2014

No Name Yard No Builder Laid down Launched Comm Fate
LCC19 Blue Ridge   Philadelphia N Yd 27.2.1967 4.1.1969 14.11.1970 in service (2019)
LCC20 Mount Whitney 593 Newport News 8.1.1969 8.1.1970 16.1.1971 in service (2019)



Displacement standard, t

LCC19: 13077

LCC20: 12846

Displacement full, t

LCC19: 19648

LCC20: 19760

Length, m

176.8 wl 189.0 oa

Breadth, m

25.0 wl 32.9 ext

Draught, m

8.20

No of shafts

1

Machinery

1 set General Electric geared steam turbines, 2 Foster Wheeler boilers

Power, h. p.

22000

Max speed, kts

21.5

Fuel, t

oil 2800

Endurance, nm(kts)

13000(16)

Armament

2 x 2 - 76/50 Mk 33, helicopter deck for 1 SH-3H Sea King

Military load

700 persons flag; 700 troops, 3 LCP, 2 LCVP

Electronic equipment

LN-66, SPS-10F, SPS-40C, SPS-48C, 2x Mk 35 radars, NTDS, ACIS, NIPS CCS

Complement

720

Project history: These two ships, survivors of a planned class of six, are direct successors to the merchant hull conversions of the Second World War. Their design was determined by a combination of internal volume requirements (for accommodation and for command spaces) and communications requirements (for antenna performance). It is based on, but by no means identical with, the earlier helicopter carrier (LPH) design, with an additional deck level and with an entirely new (full width) superstructure. Special amphibious warfare features included extra control spaces for the amphibious commander. To some extent the decision not to build further LCCs was justified on the ground that the new LHA incorporated considerable command features on its own.

Modernizations: 1974, both: + 2 x 8 Sea Sparrow SAM (16 RIM-7), 2x Mk 115 radars

1978, both: - 2x Mk 35 radars

early 1980s, both: + SLQ-32(v)3 ECM suite, 4x Mk 36 SRBOC decoy RL

late 1980s, both: + SPS-62 radar

1985, LCC19; 1987, LCC20: - SPS-10F radar; + 2 x 6 - 20/76 Mk 15 Mk 15 Phalanx, SPS-65, 2x Mk 90 radars, length oa became 194.0m

1993, both: - 2 x 8 Sea Sparrow SAM (16 RIM-7), 2 x 2 - 76/50, 2x Mk 115, SPS-62 radars; + 2 x 1 - 25/75 Mk 38 Bushmaster, 4 x 1 - 12.7/90, SPS-64 radar, SLQ-25 Nixie torpedo decoy, TBMCS CCS

2000, LCC19: - SPS-48C, SPS-65 radars, NTDS CCS; + SPS-67(v)1 radar, JMCIS, AADC, MCCIS, NTCS-A CCS

2000, LCC20: - SPS-40C, SPS-48C, SPS-64, SPS-65 radars, NTDS CCS; + SPS-67(v)1, SPS-73 radars, JMCIS, AADC, MCCIS, NTCS-A CCS

Naval service: No significant events.

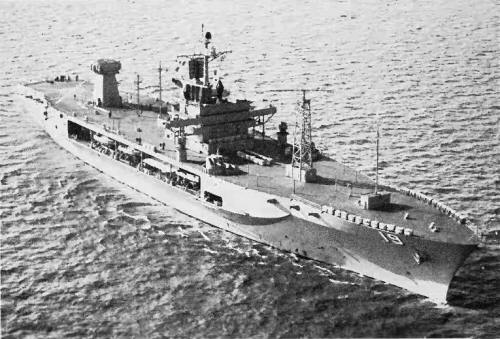

Blue Ridge 1971

Blue Ridge 2008
