AUSTIN amphibious transport-docks (1965 - 1971)

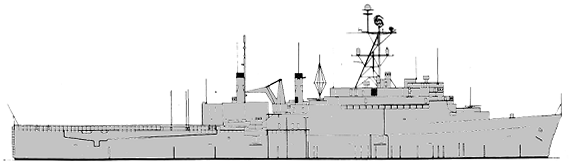

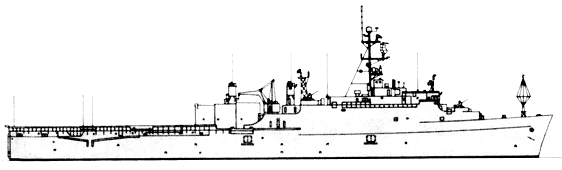

Coronado 1970

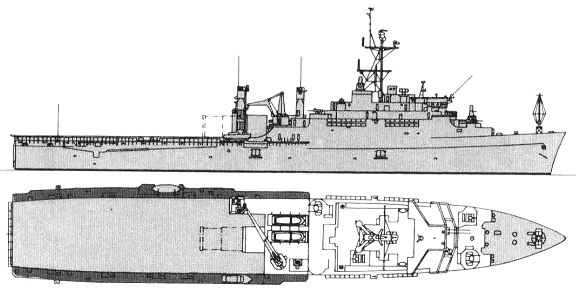

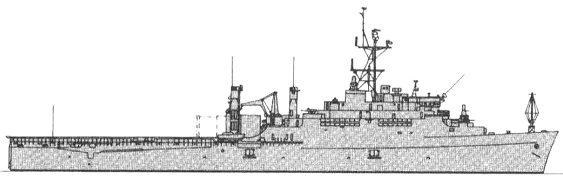

Austin 1979

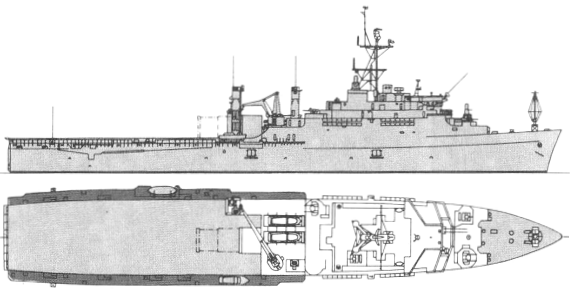

Austin 1990

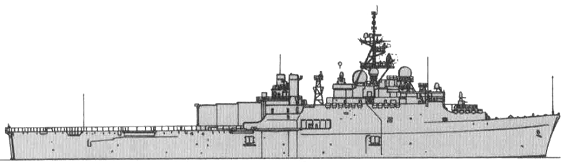

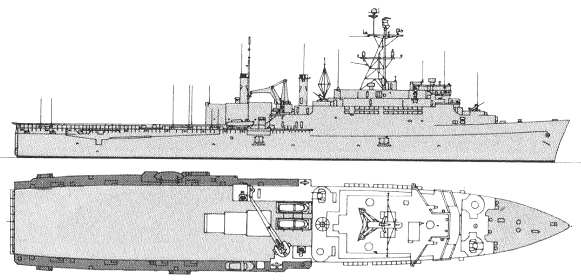

Cleveland 1990

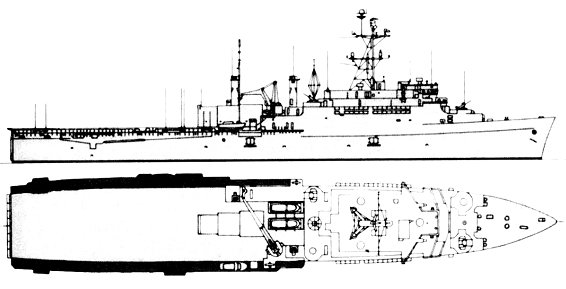

Cleveland 2000

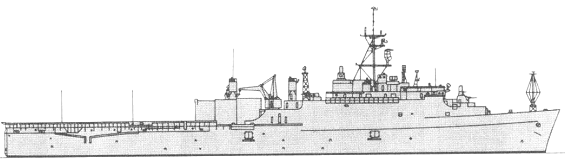

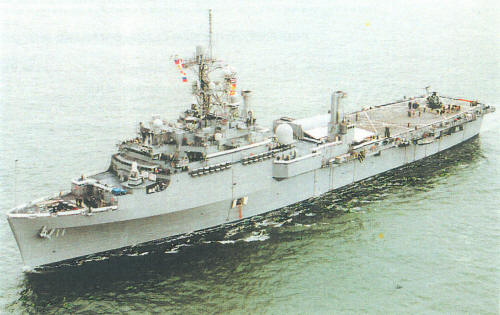

Coronado 2000

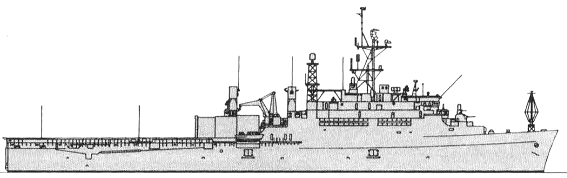

Austin 2003

Cleveland 2002

Denver 2014

Ponce 2015

No Name Yard No Builder Laid down Launched Comm Fate
LPD4 Austin   New York N Yd, Brooklyn 4.2.1963 27.6.1964 6.2.1965 stricken 9.2006
LPD5 Ogden   New York N Yd, Brooklyn 4.2.1963 27.6.1964 19.6.1965 stricken 2.2007
LPD6 Duluth   New York N Yd, Brooklyn 18.12.1963 14.8.1965 18.12.1965 stricken 9.2005
LPD7 Cleveland 1106 Ingalls, Pascagoula 30.11.1964 7.5.1966 21.4.1967 stricken 11.2017
LPD8 Dubuque 1107 Ingalls, Pascagoula 25.1.1965 6.8.1966 1.9.1967 stricken 11.2017
LPD9 Denver 122 Lockheed, Seattle 7.7.1964 23.1.1965 26.10.1968 stricken 11.2017
LPD10 Juneau 123 Lockheed, Seattle 23.1.1965 12.2.1966 12.7.1969 stricken 11.2017
LPD11, 8.1980- AGF11, 2.2005- T-AGF11 Coronado 128 Lockheed, Seattle 3.5.1965 30.7.1966 23.5.1970 flagship 8.1980, stricken 9.2006
LPD12 Shreveport 129 Lockheed, Seattle 27.12.1965 22.10.1966 12.12.1970 stricken 9.2007
LPD13 Nashville 130 Lockheed, Seattle 14.3.1966 7.10.1967 14.2.1970 stricken 11.2017
LPD14 Trenton 137 Lockheed, Seattle 8.8.1966 3.8.1968 6.3.1971 to India 1.2007 (जलश्वा [Jalashwa])
LPD15, 3.2012- AFSB(I)15 Ponce 138 Lockheed, Seattle 31.10.1966 20.5.1970 10.7.1971 forward stating base 3.2012, stricken 11.2017



Displacement standard, t

10000

Displacement full, t

16900

Length, m

173.8

Breadth, m

25.6

Draught, m

7.00

No of shafts

2

Machinery

LPD4, 6-11, 13-15: 2 sets De Laval geared steam turbines, 2 Foster Wheeler boilers

LPD5, 12: 2 sets De Laval geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

24000

Max speed, kts

20

Fuel, t

oil

Endurance, nm(kts)

7700(20)

Armament

4 x 2 - 76/50 Mk 33, 6 UH-34 or CH-46 helicopters (2 in hangar, other on deck)

Military load

LPD4-6: 930 troops, (1 LCU + 4 LCM(8)) or 28 LVT, 2 LCM(6) or 4 LCPL

LPD7-15: 840 troops, (1 LCU + 4 LCM(8)) or 28 LVT, 2 LCM(6) or 4 LCPL

Electronic equipment

SPS-10F, SPS-40B, Mk 34, 2x SPG-50 radars, WLR-1 ECM suite

Complement

501

Project history: These ships were intended as successors to the Landing Ship Dock with much increased troop (930, 840 in flagships) and cargo (about 2500t) capacity and a smaller well deck (51.2x15.2m), accommodating one LCU and three LCM-6 or four LCM-8 or twenty LVT; in addition there was a large crane at the after end of the superstructure which can launch craft carried on the flight deck, typically two LCM-6 or four LCPL. Ships after the Austin (LPD 4) have a hangar 17.7-19.5m in length and 5.6-7.3m in width, extensible to about 24.5m. The deck has two helicopter spots, but ships have deployed with up to six CH-46 embarked.

    Austins were somewhat enlarged than Raleigh. The LPD Coronado served as Middle East Flagship (AGF11 vice LPD11).

    LPD7-13 were fitted as amphibious squadron flagships and had an extra bridge level. A proposed LPD16, to have been built under the FY66 programme, was deferred in favour of the LHA programme then cancelled in 1969. The other LPDs were built under the FY59 (prototype), FY60 (1), FY61 (1), FY62 (3), FY63 (4), FY64 (3) and FY65 (2) programmes.

    Ponce in 2012 was reclassified as Interim Afloat Forward Stating Base AFSB(I). Her role became support of mine countermeasures, coastal patrol, small boat and RIB operations in the Persian Gulf area.

    All ships of class later can carry 1 LCAC.

Modernizations: 1977-1978, all: - 2 x 2 - 76/50, 2x Mk 34, SPG-50 radars

1982, AGF11: + changes while rebuilt as AGF

1983-1987, all: - WLR-1 ECM suite; + SLQ-32(v)1 ECM suite, 4x Mk 36 SRBOC decoy RL

1989-1994, all: + 2 x 6 - 20/76 Mk 15 Phalanx, 2x Mk 90 radars

1992-1993, all: - 2 x 2 - 76/50; + 2 x 1 - 25/75 Mk 38 Bushmaster, 8 x 1 - 12.7/90, SPS-64 radar

1990s, Ogden, Duluth, Cleveland, Dubuque, Denver, Juneau, Shreveport, Nashville, Trenton, Ponce: + SLQ-25 torpedo decoy

1990s, Coronado: - SPS-40B radar; + 2 x 1 - 12.7/90, SPS-64 radar, SLQ-25 torpedo decoy

4/2012, Ponce: can use UAV, crew size was reduced to 221 personnel.

2014, Ponce: + 1 x 1 LAWS solid state laser weapon system

Naval service: No significant events.

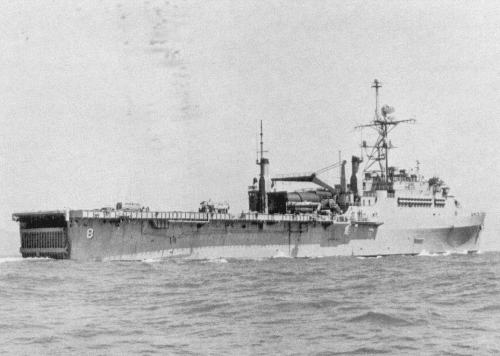

Dubuqe 1980
