UNITED STATES NAVY (UNITED STATES OF AMERICA)

AMPHIBIOUS SHIPS AND CRAFT

ARCTURUS class amphibious cargo ships (1939/1940-1941)

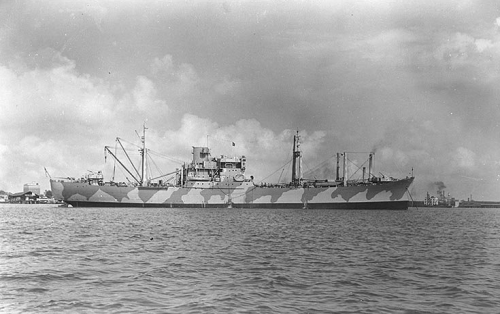

Arcturus 1944

No Name Yard No Builder Laid down Launched Comm Fate
AK18, 2.1943- AKA1 Arcturus (ex-Mormachawk) 176 Sun SB, Chester // Philadelphia N Yd 7.1938 18.5.1939 7.1939 // 10.1940 stricken 6.1946
AK23, 2.1943- AKA6 Alchiba (ex-Mormacdove) 178 Sun SB, Chester // Boston N Yd 8.1938 6.7.1939 9.1939 // 8.1941 stricken 2.1946
AK24, 11.1942- AKA7 Alcyone (ex-Mormacgull) 179 Sun SB, Chester // Boston N Yd 1.1939 28.8.1939 10.1939 // 6.1941 stricken 8.1946
AK25, 2.1943- AKA8 Algorab (ex-Mormacwren) 177 Sun SB, Chester // Boston N Yd 8.1938 15.6.1939 8.1939 // 6.1941 stricken 12.1945
AK28, 2.1943- AKA11 Betelgeuse (ex-Mormaclark) 180 Sun SB, Chester // Brewer Drydock 3.1939 18.7.1939 11.1939 // 6.1941 stricken 3.1946



Displacement standard, t

7293

Displacement full, t

13910

Length, m

140.0

Breadth, m

19.2

Draught, m

8.00

No of shafts

1

Machinery

AKA1: 1 Sun Nordberg diesel

AKA6-8, 11: 1 Sun Doxford diesel

Power, h. p.

6000

Max speed, kts

16.5

Fuel, t

diesel oil 1790

Endurance, nm(kts)

Armament

1 x 1 - 127/38 Mk 12, 4 x 1 - 76/50 Mk 20, 4 x 1 - 12.7/90

Military load

15 - 16 LCVP, 8 LCM(3), 4410t of cargo, 112 marines

by 1945: 6 LCM(6), 2 LCM(3), 9 LCVP, 2 LCPL, 4410t of cargo, 112 marines

Complement

267-397

Project history: USN military transport vessels were sectioned into two groups: ÀÐ for transportation of troops and ÀÊ for carriage of goods and technics. The majority of them were built on the basis of standard types Ñ2, Ñ3 and Ñ4 and differed from usual cargo ships a little.

For delivery of troops and cargoes directly to a beaching place assault landing transport ships (ÀÐÀ and ÀÊÀ) served, which main difference from ÀÊ and ÀÐ consisted that they were extra equipped with disembarkation craft of LCVP, LCM and LCP (L) types; with their help delivery of people and cargoes to beach also was effected.

Originally similar ships were not outlined in own subclass and were registered as ÀÐ and ÀÊ. In February, 1943 reorganisation was done and assault transports have received indexation ÀÐÀ and ÀÊÀ.

Two ships of Doyen class, projected even on the eve of war for landing operations in Caribbean basin, became the first American assault military transports. The overwhelming majority of remaining ÀÐÀ and ÀÊÀ has been converted from merchant cargo and cargo-passenger vessels or constructed in hulls of standard cargo vessels built by the big series in days of war. An exception were specially projected as assault transports Gilliam (ÀÐÀ) and Artemis (ÀÊÀ) classes.

Besides the large landing transport ships of ÀÐÀ and ÀÊÀ classes, small landing parties and subversive groups were landed by fast landing transports (APD) converted from become outdated Wickes and Clemson classes destroyers and destroyer escorts of Buckley and Rudderow classes.

Arcturus class ships were ex-cargo vessels for Moore-McCormack Lines, were purchased by Navy on stocks. Standard type C2.

Modernizations: by 1945 all ships were armed with 1 x 1 - 127/38 Mk 12, 2 x 2 - 40/56 Mk 1.2, 16 x 1 - 20/70 Mk 4, SC or SF or SL or SN or SO or SU radar

1/1946: 1 x 1 - 127/38 Mk 30, 2 x 2 - 40/60 Mk 1, 16 x 1 - 20/70 Mk 10, SC or SF or SL or SN or SO or SU radar

Naval service: No significant events.

Alchiba 1942
