No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
AK26, 11.1942- AKA9 | Alhena (ex-Robin Kettering) | 4343 | Bethlehem, Sparrows Point | 6.1940 | 18.1.1941 | 6.1941 | stricken 8.1946 |
Displacement standard, t |
7101 |
Displacement full, t |
11154 |
Length, m |
146.2 |
Breadth, m |
20.1 |
Draught, m |
6.30 |
No of shafts |
1 |
Machinery |
Bethlehem geared steam turbine, 2 Babcock & Wilcox boilers |
Power, h. p. |
6300 |
Max speed, kts |
16.6 |
Fuel, t |
oil 2360 |
Endurance, nm(kts) | 11000(12) |
Armament |
1 x 1 - 127/38 Mk 12, 4 x 1 - 76/50 Mk 10.18 |
Military load |
15 - 16 LCVP, 8 LCM(3), cargo, troops by 1945: 6 LCM(6), 2 LCM(3), 10 LCVP, 1 LCPL, 4885t of cargo, 162 marines |
Complement | 446 |
Project history: USN military transport vessels were sectioned into two groups: �� for transportation of troops and �� for carriage of goods and technics. The majority of them were built on the basis of standard types �2, �3 and �4 and differed from usual cargo ships a little.
For delivery of troops and cargoes directly to a beaching place assault landing transport ships (��� and ���) served, which main difference from �� and �� consisted that they were extra equipped with disembarkation craft of LCVP, LCM and LCP (L) types; with their help delivery of people and cargoes to beach also was effected.
Originally similar ships were not outlined in own subclass and were registered as �� and ��. In February, 1943 reorganisation was done and assault transports have received indexation ��� and ���.
Two ships of Doyen class, projected even on the eve of war for landing operations in Caribbean basin, became the first American assault military transports. The overwhelming majority of remaining ��� and ��� has been converted from merchant cargo and cargo-passenger vessels or constructed in hulls of standard cargo vessels built by the big series in days of war. An exception were specially projected as assault transports Gilliam (���) and Artemis (���) classes.
Besides the large landing transport ships of ��� and ��� classes, small landing parties and subversive groups were landed by fast landing transports (APD) converted from become outdated Wickes and Clemson classes destroyers and destroyer escorts of Buckley and Rudderow classes.
Alhena was built in standard type C2 mod. hull.
Modernizations: by 1945 ship was presumably armed with 1 x 1 - 127/38 Mk 12, 4 x 2 - 40/56 Mk 1.2, 18 x 1 - 20/70 Mk 4, SC or SF or SL or SN or SO or SU radar
1/1946: 1 x 1 - 127/38 Mk 30, 4 x 2 - 40/60 Mk 1, 18 x 1 - 20/70 Mk 10, SC or SF or SL or SN or SO or SU radar
Naval service: No significant events.

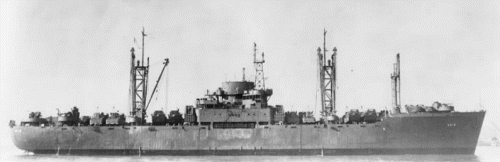

Alhena 1944
