similar Doğan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Yıldız | P348 | Taşkizak NSY, Istanbul | 3.6.1994 | 3.6.1996 | in service (2019) | ||
| Karayel | P349 | Taşkizak NSY, Istanbul | 20.6.1995 | 19.9.1996 | in service (2019) |
|
Displacement standard, t |
353 |
|
Displacement full, t |
436 |
|
Length, m |
54.4 pp 57.8 oa |
|
Breadth, m |
8.50 |
|
Draught, m |
2.70 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB91 diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3300(16) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 35/90 GDM-A, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca TM1226, AWS-6, TMX radars, LIOD Mk 2 e/o system, Cutlass, Scorpion ECM suites, 2x SRBOC Mk 36 decoy RL, TACTICOS IV CCS |
|
Complement |
45 |
Project history: Modified German FPB 57 class. Ordered in 1991 as an improved version of the Doğan series. Have steel hulls, aluminum superstructures, and NBC warfare defensive citadels.
Modernizations: None.
Naval service: No significant events.

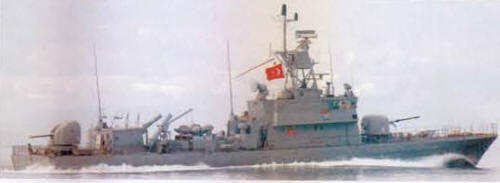

Yıldız 2008
