Doğan 1931
|
Names |
Doğan Denizkuşu Martı |
|
Builders |
SVAN, Venice, Italy: Doğan, Denizkuşu, Martı |
|
Commissioned |
1931: Doğan, Denizkuşu, Martı |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1948: Doğan, Denizkuşu, Martı |
|
Displacement standard, t |
32 |
|
Displacement full, t |
|
|
Length, m |
21.0 |
|
Breadth, m |
4.20 |
|
Draught, m |
1.01 |
|
No of shafts |
3 |
|
Machinery |
3 Isotta-Fraschini petrol engines |
|
Power, h. p. |
1500 |
|
Max speed, kts |
34 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 75/52 SK L/55 C/13, 1 x 1 - 20/65 C/30, 2 - 450 TR, 2 DCR (8) |
|
Complement |
10 |
Project history: Built by SVAN in 1926, but commissioned only in 1931. Design was developed on a basis of Italian D series MTBs (MAS397-410), but without auxiliary electric motors and accumulators for silent running. Round-bilge hull.
Modernizations: None.
Naval service: No significant events.

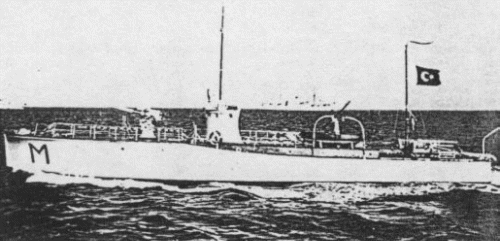

Martı 1930s
