LSB1 1943
|
Names |
LSB1 (ex-ML1124) LSB2 (ex-ML1135) LSB3 (ex-ML1256) LSB4 (ex-ML1296) LSB5 (ex-ML1294) LSB6 (ex-ML1282) LSB7 (ex-ML1245) LSB8 (ex-ML1243) |
|
Builders |
Sussex SB Co., Shoreham, UK: LSB1, 5 Berthon Boat, Lymington, UK: LSB3 Robinson, Lowestoft, UK: LSB7 Sittingbourne SB Co., UK: LSB6 McGruer, Clynder, UK: LSB4 McLean, Renfrew, UK: LSB8 Thornycroft, Hampton, UK: LSB2 |
|
Completed |
1942 // 3.1943: LSB1, 2 1943 // 8-11/1943: LSB3 - 8 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1960-1962: LSB1 - 8 |
|
Displacement standard, t |
46 |
|
Displacement full, t |
54 |
|
Length, m |
22.0 |
|
Breadth, m |
4.83 |
|
Draught, m |
1.40 deep load |
|
No of shafts |
2 |
|
Machinery |
LSB5, 7: 2 Gardner diesels LSB4: 2 Glennifer diesels LSB1 - 3, 6, 8: 2 Thornycroft diesels |
|
Power, h. p. |
LSB5, 7: 300 LSB4: 320 LSB1 - 3, 6, 8: 260 |
|
Max speed, kts |
LSB5, 7: 11.8 LSB4: 11.5 LSB1 - 3, 6, 8: 11 |
|
Fuel, t |
diesel oil 7500 l |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 47/40 3pdr Hotchkiss Mk I/II or 1 x 1 - 40/50 Mk XIV Rolls-Royce or 1 x 1 - 40/39 2pdr QF Mk VIII, 1 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 2 - 7.7/94, 8 DC |
| Electronic equipment | type 134 sonar |
|
Complement |
10 |
Project history: Patrol launches transferred to Turkey after service under British flag.
Modernizations: None.
Naval service: No significant events.

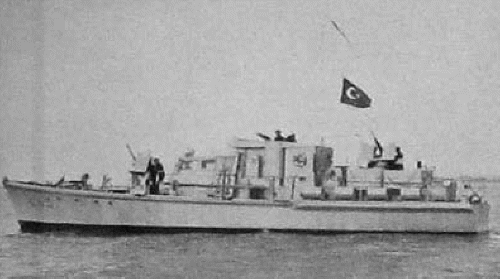

LSB5 1948
