LS9 1965
|
Names |
P339 LS9, 1960s- P1209, 1991- P109 P308 LS10, 1960s- P1210, 1991- P110 P309 LS11, 1960s- P1211, 1991- P111 P310 LS12, 1960s- P1212, 1991- P112 |
|
Builders |
USCG Yd, Curtis Bay, USA: P339, 308-310 |
|
Commissioned |
6/1953: P339, 308-310 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1999: P109-112 |
|
Displacement standard, t |
|
|
Displacement full, t |
63 |
|
Length, m |
25.3 |
|
Breadth, m |
4.25 |
|
Draught, m |
1.55 |
|
No of shafts |
2 |
|
Machinery |
2 Cummins diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL |
| Electronic equipment | radar, sonar |
|
Complement |
Project history: USCG 83-ft cutters, built for Turkish Navy.
Modernizations: None.
Naval service: No significant events.

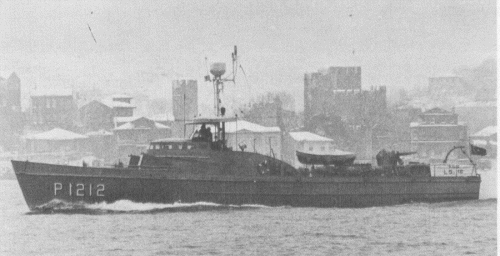

LS12 1980
