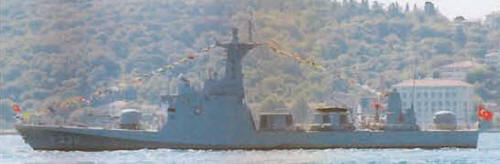

Kılıç 2010

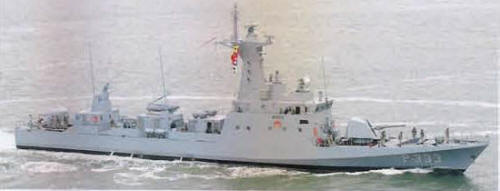

Tufan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Kılıç | P330 | Lürssen, Vegesack, Germany | 1996 | 15.7.1997 | 24.7.1998 | in service (2019) | |
| Kalkan | P331 | Taşkizak NSY, Istanbul | 5.7.1996 | 22.9.1998 | 22.7.1999 | in service (2019) | |
| Mızrak | P332 | Taşkizak NSY, Istanbul | 1997 | 5.4.1999 | 8.6.2000 | in service (2019) | |
| Tufan | P333 | Lürssen, Vegesack, Germany | 25.7.2001 | 24.2.2003 | 26.7.2005 | in service (2019) | |
| Meltem | P334 | Pendik NSY, Istanbul | 25.7.2001 | 1.9.2004 | 26.7.2005 | in service (2019) | |
| İmbat | P335 | Pendik NSY, Istanbul | 25.7.2002 | 26.7.2005 | 7.7.2006 | in service (2019) | |
| Zıpkın | P336 | Pendik NSY, Istanbul | 2003 | 27.9.2006 | 17.9.2007 | in service (2019) | |
| Atak | P337 | Pendik NSY, Istanbul | 2005 | 4.1.2008 | 14.10.2009 | in service (2019) | |
| Bora | P338 | Pendik NSY, Istanbul | 2006 | 23.5.2009 | 7.4.2010 | in service (2019) |
|
Displacement standard, t |
440 |
|
Displacement full, t |
550 |
|
Length, m |
58.7 pp 62.4 oa |
|
Breadth, m |
8.60 |
|
Draught, m |
2.80 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
23300 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3300(16) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40 |
|
Electronic equipment |
P330-332: MW-08, Sting, type 1007 radars, LIOD Mk 2 e/o system, Cutlass ECM suite, 2x SRBOC Mk 36 decoy RL, TACTICOS IV CCS P333-338: MW-08, Sting, Scout, LIROD radars, Cutlass ECM suite, 2x SRBOC Mk 36 decoy RL, STACOS CCS |
|
Complement |
44 |
Project history: Enlarged version of the FPB 57 design, type FPB 57-052B, with an integrated weapons-control system and new electronics. Were initially fitted with bulwarks at the bow, removed after builder's trials. Usually carry only four Harpoon missiles.
Modernizations: None.
Naval service: No significant events.
Kılıç 2008
Tufan 2005
