similar Lazaga 1990
| Name | No | Yad No | Builder | Laid down | Launched | Comp | Fate |
| Girne | P140 | Taşkizak NSY, Istanbul | 30.7.1976 | stricken 11.2000 |
|
Displacement standard, t |
341 |
|
Displacement full, t |
399 |
|
Length, m |
54.4 pp 58.1 oa |
|
Breadth, m |
7.60 |
|
Draught, m |
2.80 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V956 TB91 diesels |
|
Power, h. p. |
9000 |
|
Max speed, kts |
29.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4200(16) |
|
Armament |
1 x 2 - 40/60 Mk 3, 1 x 1 - 40/60 Mk 7, 2 x 1 - 12.7/90, 4 x 4 Mk 20 Mousetrap Mk 20 ASWRL, 2 Mk 6 DCT, 2 Mk 9 DCR (18) |
| Sensors | 2x Decca TM1226 radars, Naja e/o system, PMS26 sonar |
| Complement |
30 |
Project history: German PB 57 class, as Spanish Lazaga but with lighter armament.
Modernizations: 1982: - 1 x 2 - 40/60; + 1 x 1 - 40/60 Mk 7
1988: - Decca TM1226 radar
Naval service: No significant events.

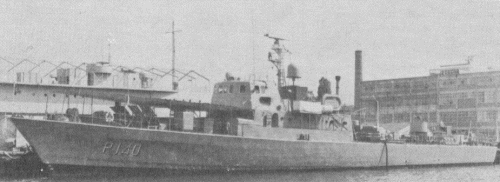

Girne 1978
