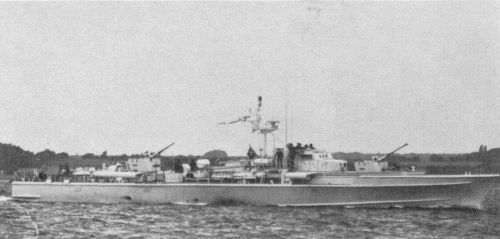

Tufan 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Fırtına (ex-Pelikan) | P330 | Kröger-Werft, Schacht-Audorf, West Germany | 12.12.1959 | 3/1960 // 31.5.1974 | stricken 1985 | ||
| Tufan (ex-Storch) | P331 | Lürssen, Vegesack, West Germany | 16.11.1959 | 3/1960 // 29.3.1974 | stricken 2.1988 | ||
| Kılıç (ex-Pinguin) | P332 | Lürssen, Vegesack, West Germany | 4.7.1960 | 3/1961 // 1974 | stricken 12.1988 | ||
| Mızrak (ex-Häer) | P333 | Lürssen, Vegesack, West Germany | 9.1.1960 | 4/1960 // 15.12.1974 | stricken 6.1993 | ||
| Yıldız (ex-Wolf) | P334 | Lürssen, Vegesack, West Germany | 21.9.1957 | 2/1958 // 21.3.1975 | stricken 6.1993 | ||
| Kalkan (ex-Löwe) | P335 | Lürssen, Vegesack, West Germany | 8.11.1958 | 2/1959 // 25.4.1975 | stricken 7.1981 | ||
| Karayel (ex-Tiger) | P336 | Kröger-Werft, Schacht-Audorf, West Germany | 21.4.1958 | 10/1958 // 20.12.1974 | stricken 7.1981 |
|
Displacement standard, t |
184 |
|
Displacement full, t |
210 |
|
Length, m |
39.8 wl 42.6 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.30 |
|
No of shafts |
4 |
|
Machinery |
4 Mercedes-Benz (MTU) 16V538 diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(32) |
|
Armament |
2 x 1 - 40/70 Bofors 350, 4 - 533 TT or (2 - 533 TT, mines) |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
39 |
Project history: Former German Jaguar class craft.
Modernizations: None.
Naval service: No significant events.
Fırtına 1976
