Doğan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Doğan | P340 | Lürssen, Vegesack, Germany | 2.6.1975 | 16.6.1976 | 23.12.1977 | in service (2019) | |
| Martı | P341 | Taşkizak NSY, Istanbul | 1.7.1975 | 28.7.1977 | 1.8.1978 | in service (2019) | |
| Tayfun | P342 | Taşkizak NSY, Istanbul | 1.12.1975 | 19.7.1979 | 10.7.1980 | in service (2019) | |
| Volkan | P343 | Taşkizak NSY, Istanbul | 1976 | 11.8.1980 | 12.5.1981 | in service (2019) | |
| Rüzgâr | P344 | Taşkizak NSY, Istanbul | 30.7.1981 | 1983 | 24.5.1985 | stricken 2018 | |
| Poyraz | P345 | Taşkizak NSY, Istanbul | 1982 | 17.12.1984 | 28.8.1986 | in service (2019) | |
| Gurbet | P346 | Taşkizak NSY, Istanbul | 1985 | 24.7.1987 | 24.7.1988 | in service (2019) | |
| Fırtına | P347 | Taşkizak NSY, Istanbul | 1986 | 22.7.1988 | 14.10.1988 | in service (2019) |
|
Displacement standard, t |
353 |
|
Displacement full, t |
436 |
|
Length, m |
54.5 pp 58.1 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
2.83 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
18000 |
|
Max speed, kts |
37 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3300(16) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84A), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 35/90 GDM-A, 2 x 1 - 7.6/90 |
|
Electronic equipment |
340-345: Decca TM1226, WM-28-41 radars, Susie-1 ECM suite, 2x SRBOC Mk 36 decoy RL 346, 347: Decca TM1226, WM-28-41 radars, LIOD Mk 2 e/o system, Susie-1 ECM suite, 2x SRBOC Mk 36 decoy RL |
|
Complement |
38 |
Project history: Design based on German FPB 57 class, initially ordered in August 1973. Normally only four Harpoon SSM are carried. Similar to the Israeli Reshef class FAC(M)s.
Modernizations: 2000-2002, Doğan, Martı, Tayfun, Volkan; 2004, Rüzgar, Poyraz: + LIOD Mk 2 e/o system, TACTICOS CCS
2004, Gurbet, Fırtına: + TACTICOS CCS
Naval service: No significant events.

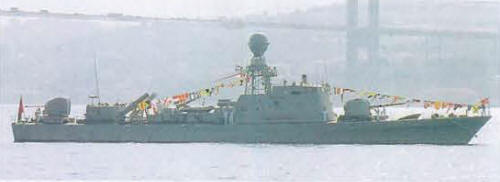

Doğan 2005
© Ivan Gogin, 2018-19
