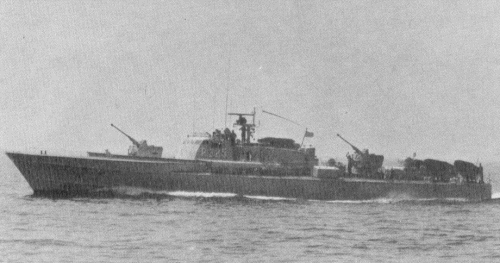

Denizkuşu 1970

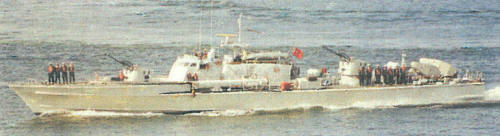

Kartal 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Denizkuşu | P321 | Lürssen, Vegesack, Germany | 3.1967 | stricken 2016 | |||
| Atmaca | P322 | Lürssen, Vegesack, Germany | 3.1967 | deleted 2013 | |||
| Şahin | P323 | Lürssen, Vegesack, Germany | 11.1966 | deleted 2015 | |||
| Kartal | P324 | Lürssen, Vegesack, Germany | 11.1966 | deleted 2013 | |||
| Meltem | P325 | Lürssen, Vegesack, Germany | 10.1968 | collision 25.9.1985 | |||
| Pelikan | P326 | Lürssen, Vegesack, Germany | 2.1970 | stricken 2016 | |||
| Albatros | P327 | Lürssen, Vegesack, Germany | 3.1970 | deleted 2015 | |||
| Şimşek | P328 | Lürssen, Vegesack, Germany | 11.1969 | deleted 2014 | |||
| Kasırga | P329 | Lürssen, Vegesack, Germany | 11.1967 | deleted 2014 |
|
Displacement standard, t |
184 |
|
Displacement full, t |
210 |
|
Length, m |
42.8 |
|
Breadth, m |
7.14 |
|
Draught, m |
2.21 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
42 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(32) |
|
Armament |
2 x 1 - 40/70 Bofors 350, 4 - 533 TT |
| Electronic equipment | Decca TM1226 radar |
|
Complement |
39 |
Project history: Convertible patrol boats similar to German Jaguar class.
Modernizations: 1975-1977, all: - 2 - 533 TT; + 4 Penguin Mk 2 SSM (4 Penguin Mk 2)
Naval service: Meltem was cut in two by Soviet TS Khasan 25.9.1985 in Black Sea, later salvaged and stricken.
Meltem 1978
Şimşek 2001
