TURKISH NAVY (TURKEY)

COASTAL FORCES

AB25 patrol boats (1969-1976)

AB25 1970

Name No Yard No Builder Laid down Launched Comp Fate
AB25 P1225, 1991- P125   Haliç SY     2.1969 retired 2003
AB26 P1226, 1991- P126   Haliç SY     2.1970 to Kazakhstan 7.2001
AB27 P1227, 1991- P127   Haliç SY     6.1969 stricken 2014
AB28 P1228, 1991- P128   Haliç SY     4.1969 stricken 2013
AB29 P1229, 1991- P129   Haliç SY     2.1969 stricken 2014
AB30 P1230, 1991- P130   Taşkizak SY, Istanbul     2.1969 to Georgia 12.1998 (ქუთაისი [Kutaisi])
AB31 P1231, 1991- P131   Haliç SY     11.1971 stricken 2013
AB32 P1232, 1991- P132   Haliç SY     1969 to Kazakhstan 7.1999 (Найгазны [Naygazny])
AB33 P1233, 1991- P133   Camialti SY     5.1970 retired 2005
AB34 P1234, 1991- P134   Istinye SY     1971 to Azerbaijan 7.2000 (Araz)
AB35 P1235, 1991- P135   Taşkizak SY, Istanbul     4.1976 stricken 2013
AB36 P1236, 1991- P136   Taşkizak SY, Istanbul     4.1976 in service (2019)


Displacement standard, t

150

Displacement full, t

170

Length, m

40.2

Breadth, m

6.40

Draught, m

1.65

No of shafts

2

Machinery

2 SACM-AGO V16CSHR diesels / 2 cruise diesels

Power, h. p.

4800 / 300

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 4 DCR (4)

Electronic equipment Decca TM1226 radar, PMS-26 sonar

Complement

31

Project history: Built with French asistance.

Modernizations: None.

Naval service: No significant events.

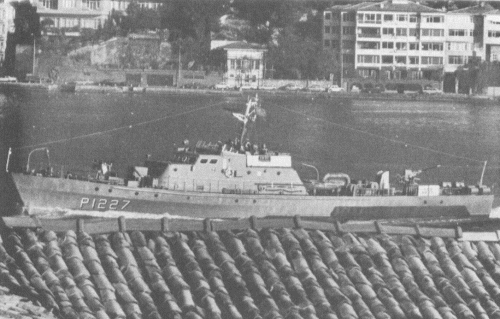

AB27 1979

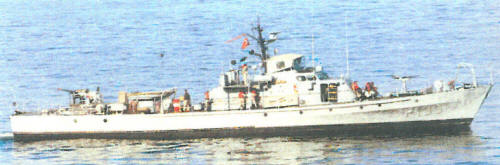

AB33 2001
