AB21 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| AB21 | P1221, 1991- P121 | Peterson, Sturgeon Bay, USA | 4.5.1967 | 8.1967 | in service (2019) | ||
| AB22 | P1222, 1991- P122 | Peterson, Sturgeon Bay, USA | 25.5.1967 | 9.1967 | in service (2019) | ||
| AB23 | P1223, 1991- P123 | Peterson, Sturgeon Bay, USA | 7.7.1967 | 10.1967 | in service (2019) | ||
| AB24 | P1224, 1991- P124 | Peterson, Sturgeon Bay, USA | 14.9.1967 | 5.1968 | in service (2019) |
|
Displacement standard, t |
104 |
|
Displacement full, t |
144 |
|
Length, m |
30.8 |
|
Breadth, m |
6.45 |
|
Draught, m |
1.83 |
|
No of shafts |
2 |
|
Machinery |
8 General Motors Detroit Diesel 6-71 diesels |
|
Power, h. p. |
2040 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil 16 |
| Endurance, nm(kts) | 1000(12) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 2 - 20/70 Mk 24, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCR (4) |
| Electronic equipment | Raytheon 1500B radar, SQS-17A sonar |
|
Complement |
30 |
Project history: PGM71 type patrol boats built in the USA for Turkey.
Modernizations: None.
Naval service: No significant events.

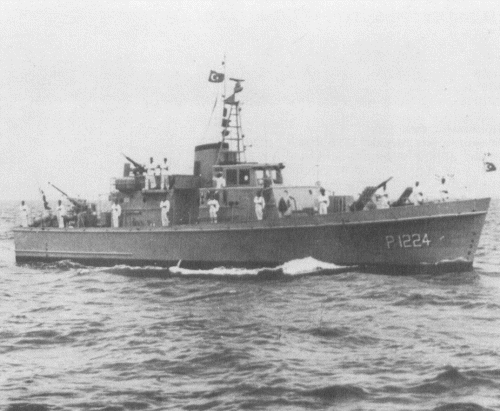

AB24 1979

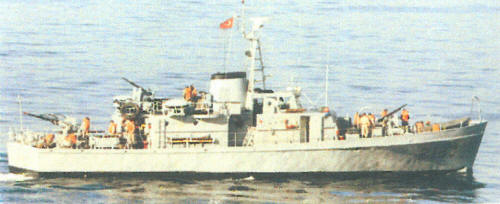

AB23 2001
