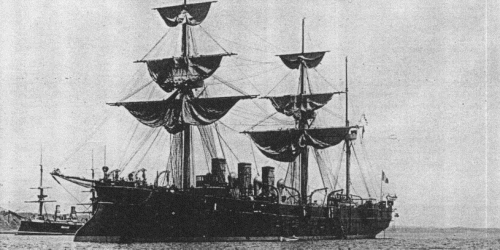

Tage 1890
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Tage | F C de la Loire, St-Nazaire | 7/1885 | 28.10.1886 | 12/1890 | stricken 1910 |
|
Displacement normal, t |
7469 |
|
Displacement full, t |
|
|
Length, m |
118.9 wl |
|
Breadth, m |
16.3 |
|
Draught, m |
7.67 max |
|
No of shafts |
2 |
|
Machinery |
2 HTE, 12 cylindrical boilers |
|
Power, h. p. |
12500 |
|
Max speed, kts |
19.2 |
|
Fuel, t |
coal 1500 |
| Endurance, nm(kts) | 8000(10) |
| Armour, mm | steel; deck: 50 with 55mm slopes, CT: 90 - 75 |
|
Armament |
8 x 1 - 165/30 M1884, 10 x 1 - 139/30 M1884, 5 x 1 - 47/40 M1885, 1 x 5 - 47/20 M1885, 14 x 5 - 37/20 M1885, 7 - 380 TT (aw, 1 bow, 4 beam) |
| Complement | 538 |
Project history: A three-funnelled protected cruiser with marked tumblehome, a pronounced plough bow and an overhanging stern. There was a forecastle and poop and she was originally rigged as a barque. The 165mm guns were on the upper deck with two in embrasure ports forward and the rest in sponsons, while the 139mm were on the main deck broadside.
Ship protection: The protective deck was complete and of 50mm total thickness, with 55mm on the slopes which ran to 1.3m below water. There was a 1m wide cofferdam above the protective deck, and 90mm bulkheads from this deck to the upper deck enclosed the main deck battery. There was a CT with 90-75mm.
Modernizations: 1900: boilers were replaced by 12 Belleville, coal stowage reduced to 980t, mainmast was removed.
1900s: - 2 x 1 - 139/30, 1 x 5 - 47/20, 14 x 5 - 37/20, 3 - 380 TT (1 bow, 2 beam); + 1 x 1 - 47/40 M1885, 16 x 1 - 37/20 M1885
Naval service: No significant events.
Tage 1900s
