Suchet 1894
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Suchet | Arsenal de Toulon | 10/1887 | 10.8.1893 | 1894 | stricken 1906 |
|
Displacement normal, t |
3362 |
|
Displacement full, t |
|
|
Length, m |
97.0 |
|
Breadth, m |
12.0 |
|
Draught, m |
6.10 mean |
|
No of shafts |
2 |
|
Machinery |
2 HTE, 24 Belleville boilers |
|
Power, h. p. |
9500 |
|
Max speed, kts |
20.4 |
|
Fuel, t |
coal 836 |
| Endurance, nm(kts) | 4000(10) |
| Armour, mm | steel; deck: 80 with 100mm slopes, CT: 70 |
|
Armament |
6 x 1 - 165/30 M1884, 4 x 1 - 100/45 M1891, 8 x 1 - 47/40 M1885, 8 x 1 - 37/20 M1885, 7 - 350 TT (1 bow sub, 6 beam aw) |
| Complement | 335 |
Project history: Suchet was originally intended as a sister of the Davout, and was similar to this vessel but had a longer hull. The 100mm guns were located abaft and before the forecastle and poop 165mm.
Ship protection: The armour deck was curved from 0.5m above water to 1.1m below amidships with a max total thickness of 80mm increased to 100mm at the slopes. There was a cofferdam about 1.2m wide above the armour deck, and the small CT had 70mm armour. There was a cellular layer above with a height of about 0.45m at the armour deck crown, and a light debris deck over the machinery spaces.
Modernizations: 1900s: military masts were replaced by poles.
Naval service: No significant events.

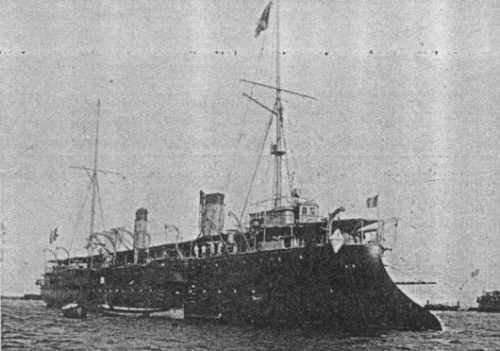

Suchet 1900s
© Ivan Gogin, 2014
