Fabert 1876
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Fabert | Arsenal de Rochefort | 1868 | 1874 | 1876 | stricken 1899 | ||
| Sané | Arsenal de Toulon | 1867 | 1869 | 1872 | stricken 1892 | ||
| Seignelay | Arsenal de Toulon | 1866 | 1874 | 1876 | wrecked 1892 |
|
Displacement normal, t |
2017 average |
|
Displacement full, t |
|
|
Length, m |
79.4 wl |
|
Breadth, m |
11.0 |
|
Draught, m |
5.59 - 5.87 max |
|
No of shafts |
1 |
|
Machinery |
Fabert: sails + 1 HC, 4 oval boilers Sané: sails + 1 VC, 4 oval boilers Seignelay: sails + 1 VC, 6 cylindrical boilers |
|
Power, h. p. |
1800 - 2000 |
|
Max speed, kts |
14.9 - 15 |
|
Fuel, t |
coal 330 - 350 |
|
Endurance, nm(kts) |
|
|
Armament |
Fabert, Segnelay: 8 x 1 - 139/21 M1870/M Sané: 6 x 1 - 139/21 M1870/M |
|
Complement |
203 |

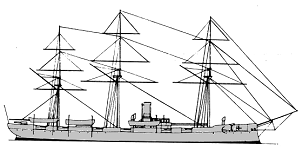

Project history: Wooden-hulled, straight-stemmed ships rigged as barques without royals. There was a short forecastle and Sané had a tripod foremast. The 139mm guns included a bow and a stern chaser with the rest on the upper deck broadside, the four in Sané being two to a sponson amidships
Modernizations: None.
Naval service: Seignelay wrecked in 1892.
