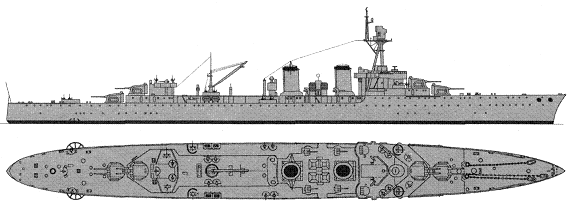

Primaguet 1939

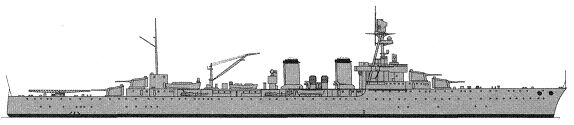

Duguay Trouin 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Duguay Trouin | Arsenal de Brest | 4.8.1922 | 14.8.1923 | 10.9.1926 | FNFL 7.1943, stricken 3.1952 | ||
| Lamotte-Picquet | Arsenal de Lorient | 17.1.1923 | 21.3.1924 | 1.10.1926 | training hulk 9.1942, sunk 12.1.1945 | ||
| Primaguet | Arsenal de Brest | 10.8.1923 | 21.5.1924 | 1.9.1926 | beached 8.11.1942 |
|
Displacement standard, t |
7249 |
|
Displacement full, t |
9350 |
|
Length, m |
175.3 pp 181.6 oa |
|
Breadth, m |
17.2 |
|
Draught, m |
5.20 full load |
|
No of shafts |
4 |
|
Machinery |
4 sets Parsons geared steam turbines, 8 Guyot du Temple boilers |
|
Power, h. p. |
100000 |
|
Max speed, kts |
33 |
|
Fuel, t |
oil 1500 |
| Endurance, nm(kts) | 4500(15) |
|
Armour, mm |
deck: 20, turrets: 25, CT: 25, citadel (magazines and steering gear): 20 |
|
Armament |
4 x 2 - 155/50 M1920, 4 x 1 - 75/50 M1922, 4 x 3 - 550 TT (24) |
|
Complement |
578 |
Project history: First large ships built in France after First World War, built under the 1922 programme. They became first-ever light cruisers with artillery placed in superfiring closed turrets. Practically had no serious armour protection. Partly its absence was indemnified by a double bottom and presence of 16 transverse bulkheads. Differed by strong torpedo armament.
On trials all reached designed speed at full load. Differed by good seaworthiness, to lacks it is possible to refer short endurance, especially on the high speed.
Ship protection: Magazines and steering gear had box-shaped 20mm protection. There was no belt.
Modernizations: 1927, all: + 1 catapult, 2 seaplanes (Besson 35 or F.B.A.17)
early 1930s, all: + 6 x 2 - 13.2/76
1937, Primaguet: - 6 x 2 - 13.2/76; + 2 x 1 - 25/60 M1938, 4 x 4 - 13.2/76
1942, Primaguet: - 2 x 3 - 550 TT
10/1943, Duguay Trouin: - 4 x 2 - 13.2/76, 4 x 3 - 550 TT, catapult with seaplanes; + 2 x 1 - 13.2/94
1/1944, Duguay Trouin: - 2 x 2 - 13.2/76; + 6 x 1 - 40/56 Mk 1.2, 20 x 1 - 20/70 Mk 4, 2 x 1 - 13.2/94, SF-1 radar
late 1945, Duguay Trouin: - 2 x 1 - 20/70, 2 x 1 - 13.2/94; + SA radar
Naval service: Duguay Trouin was a part of Force "X" and was disarmed at Alexandria in July, 1940, since July, 1943 served with the Allies. After war till 1952 she was used as depot ship. Lamotte-Picquet was the largest French ship in Indo-China. She was laid up at Saigon in September, 1942 and used as training hulk. Cruiser was bombed in Cam Ranh Bay by USN carrier aircraft (TF38.2) 12.1.1945. Primauguet also remained under the control of Vichy. During Allied landing to Casablanca she was hard damaged by gunfire of American cruisers and SBD carrier diving bombers, ran aground and became a total loss.

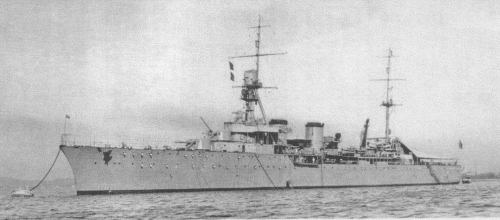

Lamotte-Picquet 1929

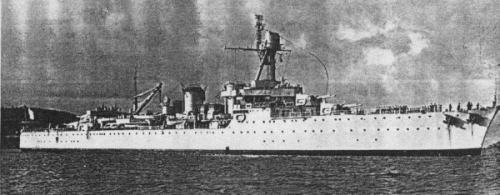

Duguay Trouin 1946
