nearly sister-ship Friant 1896
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cassard | Arsenal de Cherbourg | 1894 | 27.5.1896 | 2.1898 | TS 1922, stricken 1924 | ||
| D`Assas | A C de la Loire, St-Nazaire | 1894 | 28.3.1896 | 3.1898 | stricken 1910 | ||
| Du Chayla | Arsenal de Cherbourg | 3.1894 | 10.11.1895 | 2.1898 | stricken 1921 |
|
Displacement normal, t |
Cassard, Du Chayla: 3890 D`Assas: 3962 |
|
Displacement full, t |
|
|
Length, m |
96.1 pp 99.0 oa |
|
Breadth, m |
13.7 |
|
Draught, m |
6.25 max |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 20 Lagrafel d`Allest boilers |
|
Power, h. p. |
10000 |
|
Max speed, kts |
20 |
|
Fuel, t |
coal 600 |
| Endurance, nm(kts) | 6000(10) |
|
Armour, mm |
shields: 50, deck: 70 (max) with 100 - 80-mm slopes, CT: 100 |
|
Armament |
D'Assas: 6 x 1 - 165/45 M1893, 4 x 1 - 100/45 M1893, 10 x 1 - 47/40 M1885, 5 x 1 - 37/20 M1885, 2 - 450 TT (aw, beam) Du Chayla, Cassard: 6 x 1 - 165/45 M1893, 4 x 1 - 100/45 M1893, 10 x 1 - 47/40 M1885, 9 x 1 - 37/20 M1885, 2 - 450 TT (aw, beam) |
|
Complement |
370 - 392 |
Project history: Similar to Friant class differing in details. D`Assas was reported to be distinctly deep in the water and of doubtful stability.
Ship protection: Curved armour deck had a cofferdam above. There was a thin splinter deck over the machinery below main deck. All guns were protected by 50mm shields.
Modernizations: 1918, Du Chayla: - 4 x 1 - 165/45, 4 x 1 - 100/45, 6 x 1 - 47/40, 9 x 1 - 37/20; + 4 x 1 - 75/35 M1897
Naval service: Cassard was attached to gunnery school in 1922-1923, turrets were removed.

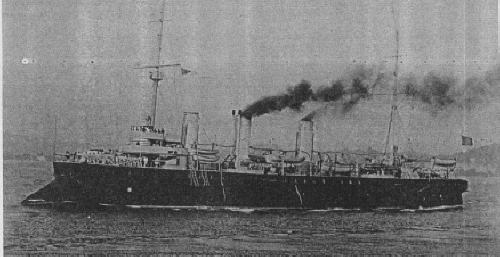

Du Chayla 1898

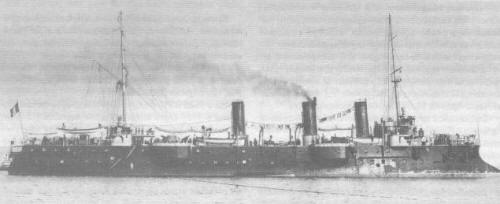

Cassard 1909
