YUGOSLAVIAN NAVY (YUGOSLAVIA)

AMPHIBIOUS FORCES

LUBIN multipurpose transports (1984)

Name No Yard No Builder Laid down Launched Comp Fate
Ëóáèí [Lubin] ÏÎ91 [PO91]   Brodosplit, Split     1984 to Montenegro 2006 (Lubin)
Óãîð [Ugor] ÏÎ92 [PO92]   Brodosplit, Split     1984 stricken 1992
Êèò [Kit] ÏÎ93 [PO93]   Brodosplit, Split     1984 stricken 2000



Displacement standard, t

600

Displacement full, t

882

Length, m

58.2

Breadth, m

11.0

Draught, m

2.75 mean

No of shafts

2

Machinery

2 diesels

Power, h. p.

3480

Max speed, kts

16.2

Fuel, t

diesel oil

Endurance, nm(kts) 1500(14.3)

Armament

2 x 1 Strela-2M SAM (some 9K32), 1 x 1 - 40/60 Mk 3, 1 x 4 - 20/90 M-75

Military load

150 troops, 6 tanks

Electronic equipment nav. radar

Complement

34

Project history: PO means Pomocni Oruzar (Ammunition Auxiliary). Intended to supply combatants with missiles, torpedoes, mines and other. Continuous cargo deck can accommodate tanks. Had extendable bow ramp and two cranes. As ammunition transports can carry 20 torpedoes or 40 sea mines.

Modernizations: None.

Naval service: No significant events.

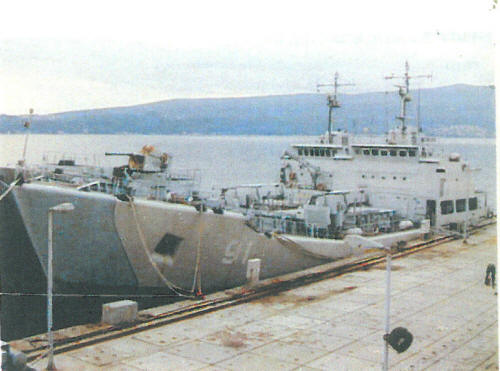

Lubin 2003
