Krk 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Êðê [Krk] | ÄÁÌ241 [DBM241] | BSO, Split | 1990 | to Montenegro 2006 (Krk) | |||
| Ðàá [Rab] | ÄÁÌ242 [DBM242] | BSO, Split | 1990 | 18.7.1992 | 19.2.1993 // --- | completed for Croatia (Cetina) | |
| iii | BSO, Split | 19.2.1993 | 17.9.1994 | 9.3.1995 // --- | completed for Croatia (Krka) |
|
Displacement standard, t |
700 |
|
Displacement full, t |
880 |
|
Length, m |
43.9 pp 49.7 oa |
|
Breadth, m |
10.2 |
|
Draught, m |
2.60 max |
|
No of shafts |
2 |
|
Machinery |
2 Burmeister & Wain Alpha 10V23L-VO diesels |
|
Power, h. p. |
3100 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1200(12) |
|
Armament |
2 x 2 - 30/71 AK-230, 1 x 4 - 20/90 M-75, 94 mines (SAG-1) instead of cargo |
|
Military load |
300 troops, 4 tanks or 7 APC or 460t cargo |
| Electronic equipment | Decca 1290A radar |
|
Complement |
33 |
Project history: Ro-ro design. Can be used as a minelayer. Had bow and stern ramps with continuous covered vehicle deck.
Modernizations: None.
Naval service: No significant events.

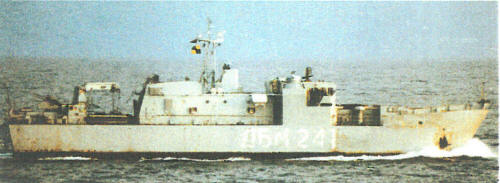

Krk 1998
