DJČ621 landing craft (1983-1987)
|
Names |
ÄJ×621 [DJČ621], 2003- ÄJ×414 [DJČ414] ÄJ×622-624 [DJČ622-624] ÄJ×625 [DJČ625], 2003- ÄJ×412 [DJČ412] ÄJ×626-629 [DJČ626-629] ÄJ×630 [DJČ630], 2003- ÄJ×413 [DJČ413] ÄJ×631 [DJČ631], 2003- ÄJ×415 [DJČ415] ÄJ×632 [DJČ632], 2003- ÄJ×411 [DJČ411] |
|
Builders |
Greben, Vela Luka: DJČ621-632 |
|
Commissioned |
1983-1985: DJČ621-631 1987: DJČ632 |
|
Losses |
DJČ622 (sunk 1991, to Croatia (Lupac)), DJČ623 (captured by Croatia 1991, No 105), DJČ624 (captured by Croatia 1991, No 106) |
|
Transfers |
Montenegro, 2006: DJČ627, 628 (DJČ627, 628) |
|
Discarding |
1991: DJČ629 2000s: DJČ626 in service (2019): DJČ411-415 |
|
Displacement standard, t |
|
|
Displacement full, t |
48 |
|
Length, m |
22.3 |
|
Breadth, m |
4.84 |
|
Draught, m |
1.07 hull 1.58 propellers |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
1740 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 320(22) |
|
Armament |
2 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher |
|
Military load |
40 troops or 15t cargo |
| Electronic equipment | Decca 101 radar |
|
Complement |
8 |
Project history: Type 22. GRP construction. 32m² cargo area and bow ramp.
Modernizations: None.
Naval service: No significant events.

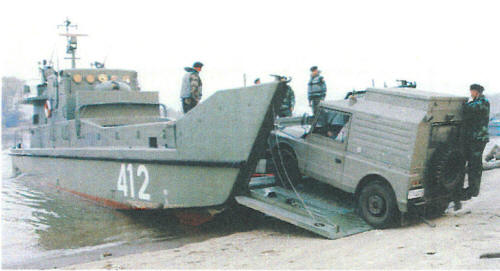

DJČ412 2003
