DJČ613 landing craft (1978)
|
Names |
ÄJ×613-620 [DJČ613-620] |
|
Builders |
Greben, Vela Luka: DJČ613-620 |
|
Commissioned |
1978: DJČ613-620 |
|
Losses |
DJČ613 (captured by Croatia 1991, No 107), DJČ615 (captured by Croatia 1991, No 104), DJČ619 (sunk 1991), DJČ620 (sunk 1991) |
|
Transfers |
Serbia, 2006: DJČ614, 616-618 (DJČ614, 616-618) |
|
Discarding |
none |
|
Displacement standard, t |
32 |
|
Displacement full, t |
38 |
|
Length, m |
21.3 |
|
Breadth, m |
4.84 |
|
Draught, m |
1.07 hull 1.58 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V31 TC81 diesels |
|
Power, h. p. |
2500 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 320(22) |
|
Armament |
1 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher |
|
Military load |
40 troops or 6t cargo |
| Electronic equipment | Decca 101 radar |
|
Complement |
7 |
Project history: Type 21. GRP construction. 32m² cargo area and bow ramp.
Modernizations: None.
Naval service: No significant events.

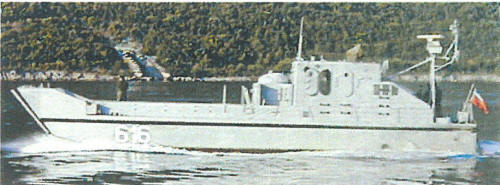

DJČ616 2003
