Orjen 1937
|
Names |
Орјен [Orjen] Велебит [Velebit] Динара [Dinara] Триглав [Triglav] Сувобор [Suvobor] Рудник [Rudnik] Кајмакчалан [Kajmakčalan], 1945- ТЧ6 [TČ6], later- ТЧ392 [TČ392] Дурмитор [Durmitor], 1945- ТЧ5 [TČ5], later- ТЧ391 [TČ391] MT9 - 12 |
|
Builders |
Lürssen, Vegesack, Germany: Orjen, Suvobor, Durmitor, Velebit, Kajmakčalan, Dinara, Triglav, Rudnik, MT9 - 12 |
|
Completed |
1936: Orjen 1937: Suvobor, Durmitor 1938: Velebit, Kajmakčalan 1939: Dinara, Triglav, Rudnik |
|
Losses |
cancelled 1939: MT9-12 Orjen (4/1941 Italian MAS3D), Velebit (4/1941 Italian MAS4D), Dinara (4/1941 Italian MAS5D), Triglav (4/1941 Italian MAS6D), Suvobor (4/1941 Italian MAS7D), Rudnik (4/1941 Italian MAS8D) |
|
Transfers |
none |
|
Discarding |
1963: TČ391, TČ392 |
|
Displacement standard, t |
49 |
|
Displacement full, t |
62 |
|
Length, m |
27.7 wl 28.0 oa |
|
Breadth, m |
4.30 |
|
Draught, m |
1.51 max |
|
No of shafts |
3 |
|
Machinery |
3 Mersedes-Benz petrol engines / 1 Maybach petrol engine for cruising |
|
Power, h. p. |
3300 / 100 |
|
Max speed, kts |
31 - 34 / 7 |
|
Fuel, t |
petrol 5.8 |
| Endurance, nm(kts) | 950(7) |
|
Armament |
1 x 1 - 40/56 Bofors M38, 1 x 1 - 15/84, 2 - 550 TT, 2 DCR (8) |
|
Complement |
16 |
Project history: Built in Germany by Lürssen under drawings of German MTB of S2 class in 1936-1938. Boats were equipped with Mersedes-Benz petrol engines; cruising 7kts speed was ensured by 100hp Maybach engine installed on central shaft. Boats had board numbers 1-8 respectively. Late 1938 Yugoslavian Navy ordered to Lürssen 4 more MTBs of Orjen class (conventional designations MT9-12). The order was cancelled after WWII beginning.
Modernizations: None.
Naval service: 16.4.1941 Durmitor and Kajmakcalan
escaped to Crete, and therefrom to Alexandria. After they were commissioned by
new Yugoslavian Navy and renamed TC5 and TC6, later TC391 and TC392, are handed over on demolition in 1962-1963
Orjen, Velebit, Dinara, Triglav, Suvobor and Rudnik
were captured in April, 1941 at Kotor and commissioned by Regia Marina as MAS3D-8D, 4.7.1942
they were renamed MS41-46.

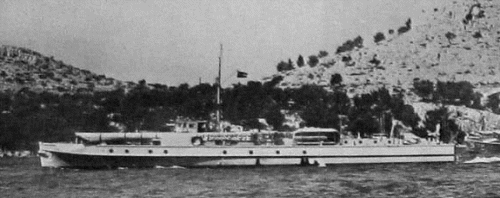

1939

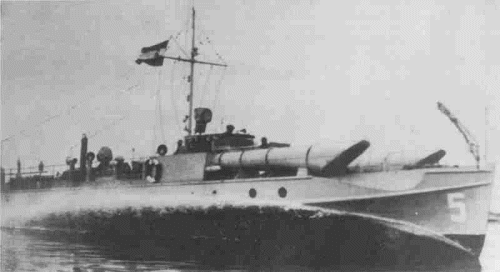

TČ5 after war
