201 1995
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |

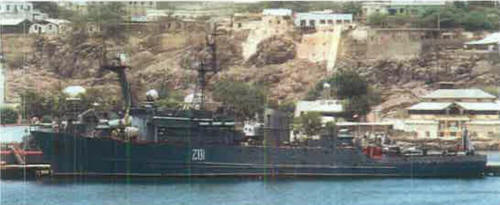

| (ex-MT-303) | 201 | 875 | Sredne-Nevskiy SSZ, Pontonnyy, USSR | 2.1991 | in service (2020) |
|
Displacement standard, t |
750 |
|
Displacement full, t |
804 |
|
Length, m |
61.0 |
|
Breadth, m |
10.2 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 M-503B-37 diesels |
|
Power, h. p. |
5000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
2 x 1 Igla-1 SAM (20 9M313), 2 x 6 - 30/54 AK-306, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 8 UDE mines, GKT mechanical, TEM-3 magnetic, AT-2 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges |
|
Electronic equipment |
MR-212 Vaygach radar, MG-69 Lan', MG-79 Mezen' or MG-89 sonars |
|
Complement |
69 |
Project history: Ocean minesweeper of Soviet export project 266ME.
Modernizations: None.
Naval service: No significant events.
2002
