| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| P1022 | Austal Ships, Henderson, Australia | 6.2004 | in service (2020) | ||||
| P1023 | Austal Ships, Henderson, Australia | 6.2004 | in service (2020) | ||||
| P1024 | Austal Ships, Henderson, Australia | 6.2004 | in service (2020) | ||||
| P1025 | Austal Ships, Henderson, Australia | 6.2004 | in service (2020) | ||||
| P1026 | Austal Ships, Henderson, Australia | 8.2004 | in service (2020) | ||||
| P1027 | Austal Ships, Henderson, Australia | 8.2004 | in service (2020) | ||||
| P1028 | Austal Ships, Henderson, Australia | 10.2004 | in service (2020) | ||||
| P1029 | Austal Ships, Henderson, Australia | 10.2004 | in service (2020) | ||||
| P1030 | Austal Ships, Henderson, Australia | 12.2004 | in service (2020) | ||||
| P1031 | Austal Ships, Henderson, Australia | 12.2004 | in service (2020) |
|
Displacement standard, t |
90 |
|
Displacement full, t |
120 |
|
Length, m |
32.4 wl 37.5 oa |
|
Breadth, m |
7.20 |
|
Draught, m |
2.20 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3512 diesels |
|
Power, h. p. |
3550 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil 22 |
|
Endurance, nm(kts) |
2000(12) |
|
Armament |
1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79 |
|
Sensors |
radar |
|
Complement |
19 |
Project history: Intended for coastal patrols around the Gulf of Aden and surrounding waterways. A simplified version of an Australian Customs design. Fitted with an articulated crane aft for launch and recovery of a small RIB.
Modernizations: None.
Naval service: No significant events.

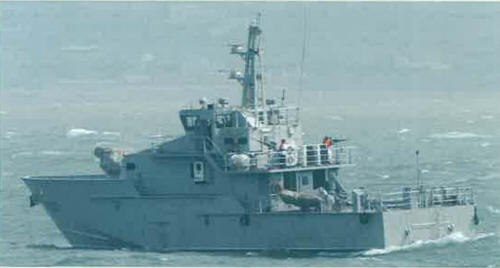

P1022 2007
