Names |
293 boats, presumably HQ7500-7749, 7800-... |
|
Builders |
United BB, Bellingham, USA: 293 boats |
|
Commissioned |
1966-1970 // 1968-1970: 293 boats |
|
Losses |
unknown 293 boats (to North Vietnam 1975) |
|
Transfers |
none |
|
Discarding |
unknown |
|
Displacement standard, t |
|
|
Displacement full, t |
6.5 - 7.1 |
|
Length, m |
9.50 - 9.70 |
|
Breadth, m |
3.20 - 3.60 |
|
Draught, m |
0.60 - 0.80 |
|
No of shafts |
2 water-jet pumps |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
432 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil 0.6 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 2 - 12.7/90, 1 x 1 - 12.7/90, 1 x 1 - 60/12 M19 mortar, 1 x 1 - 40/10 M19 grenade launcher |
| Electronic equipment | radar |
|
Complement |
4 |

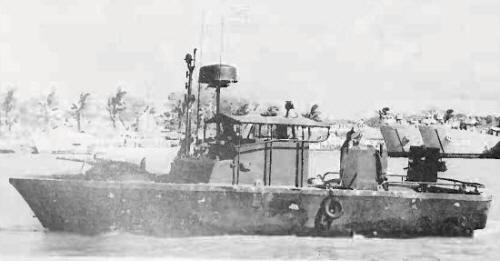

Project history: River patrol boats (PBR) with fiberglass (plastic) hulls.
Modernizations: None.
Naval service: No significant events.
1970
