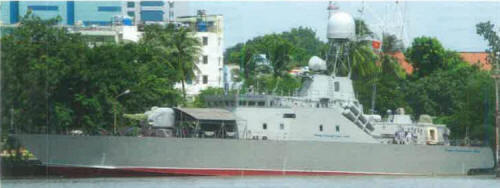

HQ-381 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| HQ-381 | HQ-381 | Ba Son, Ho Chi Minh City | 6/1998 | 2003 | in service (2019) |
|
Displacement standard, t |
517 |
|
Displacement full, t |
600 |
|
Length, m |
62.0 |
|
Breadth, m |
11.0 |
|
Draught, m |
2.20 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V4000 M90 diesels |
|
Power, h. p. |
19600 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2200(14) |
|
Armament |
2 x 4 Uran SSM (8 3M24E), 1 x 4 Strela-3 SAM (24 9K34), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630, 2 x 1 - 12.7/79 |
|
Sensors |
Pozitiv-E, MR-123E Vympel-E, nav. radars, 2x PK-16 decoy RL |
|
Complement |
28 |
Project history: Designed by Severnoye Bureau in St. Petersburg, Russia and built from imported components. Planned construction of the 2nd unit was abandoned.
Modernizations: None.
Naval service: No significant events.
HQ-381 2008
