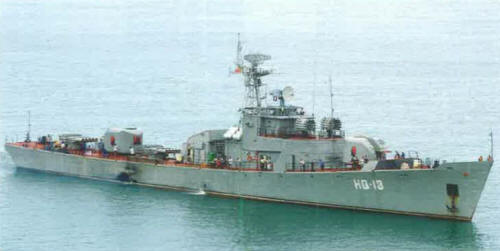

HQ-13 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| HQ-13 (ex-ÑÊÐ-141 [SKR-141]) | HQ-13 | 47 | Khabarovsk SYd, USSR | 30.4.1970 | 7.8.1971 | 31.12.1971 // 12.1983 | in service (2019) |
| HQ-15 (ex-ÑÊÐ-130 [SKR-130]) | HQ-15 | 44 | Khabarovsk SYd, USSR | 11.9.1969 | 5.9.1970 | 30.9.1970 // 12.1983 | in service (2019) |
| HQ-17 (ex-ÑÊÐ-135 [SKR-135]) | HQ-17 | 49 | Khabarovsk SYd, USSR | 15.8.1971 | 12.8.1972 | 26.12.1972 // 12.1984 | in service (2019) |
|
Displacement standard, t |
970 |
|
Displacement full, t |
1140 |
|
Length, m |
82.3 |
|
Breadth, m |
9.20 |
|
Draught, m |
2.89 mean 5.92 max |
|
No of shafts |
3 |
|
Machinery |
CODAG, 2 M-2B gas turbines + 1 61B diesel |
|
Power, h. p. |
30000+6000=36000 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
2000(14) |
|
Armament |
2 x 2 - 76/59 AK-726, 2 x 5 - 400 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 DCR, 22 mines |
|
Sensors |
MR-302 Rubka, Fut-B, Don radars, MG-312 Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite |
|
Complement |
106 |
Project history: Former Soviet project 159A small frigates.
Modernizations: None.
Naval service: No significant events.
HQ-13 2012
