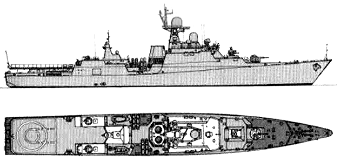

Ɖinh Tiên Hoàng 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ɖinh Tiên Hoàng | 011 | 954 | SSZ im. Gorkogo, Zelenodolsk, Russia | 10.7.2007 | 12.12.2009 | 6.3.2011 | in service (2019) |
| Lý Thái Tổ | 012 | 955 | SSZ im. Gorkogo, Zelenodolsk, Russia | 27.11.2007 | 16.3.2010 | 22.8.2011 | in service (2019) |
| Trần Hưng Ɖạo | 015 | 956 | SSZ im. Gorkogo, Zelenodolsk, Russia | 24.9.2013 | 27.4.2016 | 1.4.2017 | in service (2019) |
| Quang Trung | 016 | 957 | SSZ im. Gorkogo, Zelenodolsk, Russia | 24.9.2013 | 26.5.2016 | 6.2.2018 | in service (2019) |
| Lý Thường Kiệt | SSZ im. Gorkogo, Zelenodolsk, Russia | ordered (2019) | |||||
| Ngô Quyền | SSZ im. Gorkogo, Zelenodolsk, Russia | ordered (2019) |
|
Displacement standard, t |
1560 |
|
Displacement full, t |
2100 |
|
Length, m |
93.5 pp 102.1 oa |
|
Breadth, m |
13.6 |
|
Draught, m |
5.30 sonar 3.60 hull |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Zoria DO90 gas turbines / 1 86B diesel |
|
Power, h. p. |
29920 / 7480 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 3500(14) |
|
Armament |
011, 012: 2 x 4 Uran-E SSM (8 3M24E), 1 x (8 Sosna-R SAM + 2 x 6 - 30/54) Palma CADS (20 9M340E), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630, 2 x 1 - 14.5/93, 2 x 1 - 7.6/90, 1 x 12 RPK-8E ASWRL, helicopter deck 015, 016: 2 x 4 Uran-E SSM (8 3M24E), 1 x (8 Sosna-R SAM + 2 x 6 - 30/54) Palma CADS (20 9M340E), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630, 2 x 1 - 14.5/93, 2 x 1 - 7.6/90, 2 x 2 - 533 TT, 1 x 12 RPK-8E ASWRL, helicopter deck |
|
Electronic equipment |
Pozitiv-ME1, Monolit, Vaygach, Puma 5P-10E, Vympel-A radars, MGK-335EM-03 sonar, TK-25E ECM suite, Spektr-F4 laser detector, 4x PK-10 Smelyy decoy RL, Sigma-E CCS |
|
Complement |
121 |
Project history: Russian export project 11661E, modified Tatarstan class. First two units were ordered in 2006, second pair in 2011, third pair in 2015. Differed from Russian ships by presence of helicopter deck above the VDS housing and Palma CADS instead of fwd 30mm gatling gun.
Modernizations: None.
Naval service: No significant events.

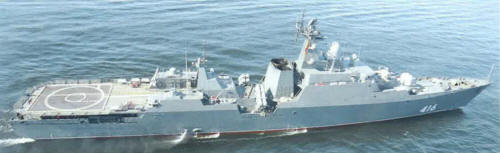

Ɖinh Tiên Hoàng 2011
