CSB-8001 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| CSB-8001 | 8001 | Vinashin, Haiphong | 23.10.2013 | in service (2019) | |||
| CSB-8002 | 8002 | Song Thu, Da Nang | 5/2015 | in service (2019) | |||
| CSB-8004 | 8004 | Song Thu, Da Nang | 2016 | in service (2019) | |||
| CSB-8005 | 805 | Song Thu, Da Nang | 2016 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
2400 |
|
Length, m |
90.5 |
|
Breadth, m |
14.0 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
4 Caterpillar C3516C diesels |
|
Power, h. p. |
12185 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3450(18) |
|
Armament |
2 x 1 - 30/77 PJ-17, 2 x 1 - 12.7/79, helicopter deck |
|
Electronic equipment |
2x radars |
|
Complement |
40 + 10 passengers |
Project history: Damen OPV 9014 (DN2000) design. 40t bollard pull.
Modernizations: None.
Naval service: No significant events.

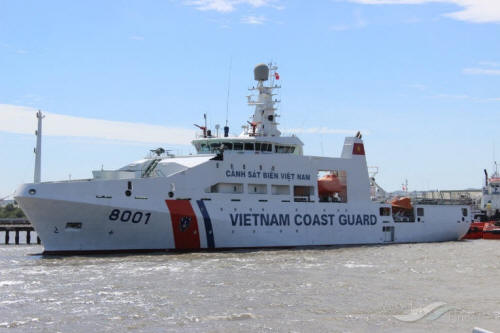

CSB-8001
