HQ-301 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| HQ-301 (ex-T-...) | HQ-301 | USSR | 1962-72 // 16.4.1979 | in service (2019) | |||
| HQ-302 (ex-T-...) | HQ-302 | USSR | 1962-72 // 16.4.1979 | stricken late 1990s? | |||
| HQ-303 (ex-T-...) | HQ-303 | USSR | 1962-72 // 12.9.1979 | stricken late 1990s? | |||
| HQ-304 (ex-T-...) | HQ-304 | USSR | 1962-72 // 12.9.1979 | stricken late 1990s? | |||
| HQ-305 (ex-T-...) | HQ-305 | USSR | 1962-72 // 8.1980 | in service (2019) | |||
| HQ-306 (ex-T-...) | HQ-306 | USSR | 1962-72 // 8.1980 | stricken late 1990s? | |||
| HQ-307 (ex-T-...) | HQ-307 | USSR | 1962-72 // 10.1980 | stricken late 1990s? | |||
| HQ-308 (ex-T-...) | HQ-308 | USSR | 1962-72 // 10.1980 | stricken late 1990s? | |||
| HQ-309 (ex-T-...) | HQ-309 | USSR | 1962-72 // 1981 | stricken late 1990s? | |||
| HQ-310 (ex-T-...) | HQ-310 | USSR | 1962-72 // 1981 | stricken late 1990s? | |||
| HQ-311 (ex-T-...) | HQ-311 | USSR | 1962-72 // 1981 | stricken late 1990s? | |||
| HQ-312 (ex-T-...) | HQ-312 | USSR | 1962-72 // 1981 | stricken late 2000s? | |||
| HQ-313 (ex-T-...) | HQ-313, late 2000s- CSB-5011? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? | |||
| HQ-314 (ex-T-...) | HQ-314, late 2000s- CSB-5012? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? | |||
| HQ-315 (ex-T-...) | HQ-315, late 2000s- CSB-5013? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? | |||
| HQ-316 (ex-T-...) | HQ-316, late 2000s- CSB-5014? | USSR | 1962-72 // 6.1983 | to Coast Guard late 2000s, in service (2019)? |
|
Displacement standard, t |
129 |
|
Displacement full, t |
152 |
|
Length, m |
34.1 |
|
Breadth, m |
6.77 |
|
Draught, m |
1.72 |
|
No of shafts |
3 |
|
Machinery |
3 M-503A/G diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
46 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1700(13) |
|
Armament |
2 x 2 - 30/71 AK-230, 4 - 533 TT, 2 DC, 6 mines |
|
Sensors |
MR-102 Baklan, MR-104 Rys' radars |
|
Complement |
21 |
Project history: Former Soviet FACs of project 206.
Modernizations: late 2000s, four units: - 2 x 2 - 30/71, 4 - 533 TT, 2 DC, 6 mines, MR-104 Rys' radar; + 2 x 2 - 25/82 2M-3M, 1 x 1 - 14.5/93, Decca radar
Naval service: The fate of individual boats is unknown. Data on the fate of individual boats in the table reflect only the number of units.

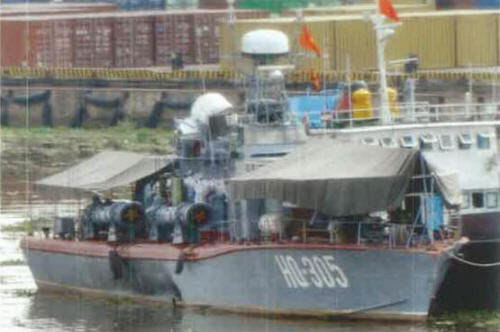

HQ-305 2011
