HQ-272 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| HQ-272 | 272 | Hong Ha, Haiphong | 16.1.2012 | in service (2019) | |||
| HQ-273 | 273 | Hong Ha, Haiphong | 31.8.2012 | in service (2019) | |||
| HQ-274 | 274 | Hong Ha, Haiphong | 28.5.2014 | in service (2019) | |||
| HQ-275 | 275 | Hong Ha, Haiphong | 25.9.2014 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
420 |
|
Length, m |
54.2 |
|
Breadth, m |
9.16 |
|
Draught, m |
3.40 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V595 TE890 diesels |
|
Power, h. p. |
16856 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2500(14) |
|
Armament |
1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M |
|
Sensors |
nav., MR-123 Vympel-A radars |
|
Complement |
21 + 12 passengers |
Project history: Indigenous TT400TP design, modified FC54 design of police craft. Steel hull and aluminium superstructure.
Modernizations: None.
Naval service: No significant events.

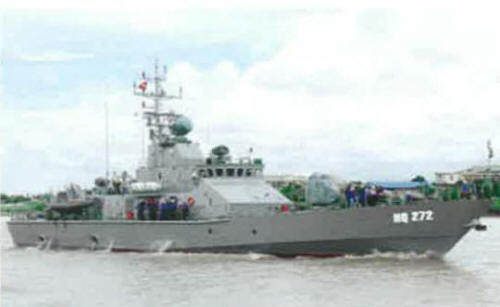

HQ-272 2011
