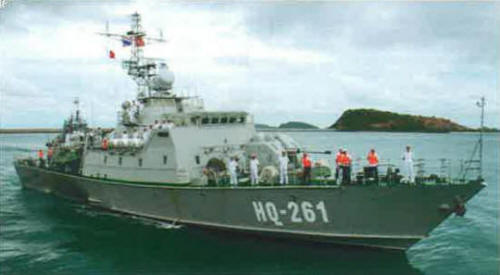

HQ-261 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| HQ-261 | 261 | 040 | Almaz, St. Petersburg, Russia | 2001 | 18.7.2002 | 1.2003 | in service (2019) |
| HQ-263 | 263 | 041 | Almaz, St. Petersburg, Russia | 2001 | 18.8.2002 | 1.2003 | in service (2019) |
| HQ-264 | 264 | 045 | Almaz, St. Petersburg, Russia | 26.6.2009 | 12.11.2010 | 20.10.2011 | in service (2019) |
| HQ-265 | 265 | 044 | Almaz, St. Petersburg, Russia | 26.6.2009 | 22.4.2011 | 20.10.2011 | in service (2019) |
| HQ-266 | 266 | 420 | Vostochnaya Verf', Vladivostok, Russia | 22.7.2009 | 2011 | 26.10.2012 | in service (2019) |
| HQ-267 | 267 | 421 | Vostochnaya Verf', Vladivostok, Russia | 22.7.2009 | 2011 | 26.10.2012 | in service (2019) |
|
Displacement standard, t |
333 |
|
Displacement full, t |
375 |
|
Length, m |
43.0 pp 49.5 oa |
|
Breadth, m |
9.20 |
|
Draught, m |
2.63 |
|
No of shafts |
3 |
|
Machinery |
3 M-520 diesels |
|
Power, h. p. |
16200 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2200(13) |
|
Armament |
1 x 2 Igla-1M SAM (16 Igla-1M), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M, 2 x 1 - 14.5/93 |
|
Sensors |
Furuno FR-2150W, Mius, MR-123 Vympel-A radars, Sliabing ECM suite, 2x PK-16 decoy RL |
|
Complement |
28 |
Project history: Russian export project 10412 without ASW equipment. Steel hull with aluminium superstructure.
Modernizations: None.
Naval service: No significant events.
HQ-261 2009
