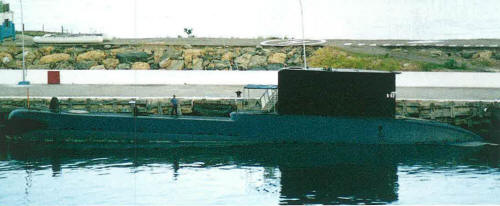

Sábalo 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sábalo | S21, 1977- S31 | Howaldtswerke, Kiel, West Germany | 2.5.1973 | 1.7.1975 | 6.8.1976 | in service (2019) | |
| Carite | S22, 1977- S32 | Howaldtswerke, Kiel, West Germany | 1.8.1973 | 16.11.1975 | 11.3.1977 | in service (2019) |
|
Displacement standard, t |
1100 |
|
Displacement normal, t |
1285 / 1600 |
|
Length, m |
61.2 |
|
Breadth, m |
6.20 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 TB90 diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2400 / 5000 |
|
Max speed, kts |
10 / 22 |
|
Fuel, t |
diesel oil 108 |
| Endurance, nm(kts) | 7800(8) / 400(4) |
|
Armament |
8 - 533 TT (bow, 14 Mk 37 mod.2, SST-4) |
|
Electronic equipment |
Calypso radar, CSU-3-32, DUUX-2 sonars, DR-2000 ECM suite, Mk 8 mod.24 CCS |
|
Complement |
33 |
|
Diving depth operational, m |
250 |
Project history: West German type 209/1300. Two units were ordered in 1971 and a second pair in 1977, but second pair was never laid down.
Modernizations: 1992, Sábalo; 1994, Caribe: - Mk 8 mod.24 CCS; + ISUS CCS
2010, Sábalo; 2017, Carite: - Calypso radar, CSU-3-32 sonar, ISUS CCS; + Scanter radar, CSU-3-32(KAE) sonar, SUBTICS CCS
Naval service: No significant events.
Caribe 1999
