sister-ship Isla de Luzón 1898
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mariscal Sucre (ex-Isla de Cuba) | Armstrong, Newcastle, UK | 3.1886 | 11.12.1886 | 1887 // 4.1912 | gunnery drill hulk 1929, sunk as target 22.1.1952 |
|
Displacement normal, t |
1030 |
|
Displacement full, t |
|
|
Length, m |
56.1 pp 58.6 oa |
|
Breadth, m |
8.87 |
|
Draught, m |
3.84 max |
|
No of shafts |
2 |
|
Machinery |
2 HTE, 2 cylindrical boilers |
|
Power, h. p. |
1897 natural, 2627 forced draught |
|
Max speed, kts |
14.2 natural, 15.9 forced draught |
|
Fuel, t |
coal 160 |
|
Endurance, nm(kts) |
2640(10) |
|
Armament |
2 x 1 - 102/40 Mk III/IV/V/VI, 2 x 1 - 57/50 Driggs-Schroeder Mk II/III, 6 x 1 - 47/40-45 Driggs-Schroeder Mk I/II, 2 x 1 - 37/40 Driggs-Schroeder |
| Military load | 300 troops |
|
Complement |
92 |
Project history: Former Spanish protected cruiser Isla de Cuba, sunk 1.5.1898 in battle at Cavite. She was salvaged by the United States and after repair and re-arming commissioned by US Navy under former name. Ship was bought by Venezuela 2.4.1912 as an element of naval reform, undertaken by the Government of General Gomez. Ship was converted to military transport, capable to carry up to 300 troops and armed with 2 102mm, 2 57mm and 6 47mm guns; by the end of WWI she can make no more than 10kts.
Modernizations: None.
Naval service: For a peace time she was transferred to naval school. Ship was discarded from fleet list in 1929 and converted to non-self-propelled gunnery drill ship. During Second World War she was used as floating battery at island Las-Aves, fulfilling also a role of a headquarters vessel.

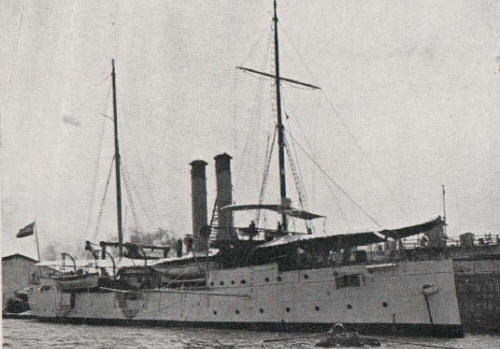

Mariscal Sucre 1933
