Los Frailes 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Los Frailes | T91 | Damex, Santiago de Cuba, Cuba | 5.3.2012 | in service (2019) | |||
| Los Testigos | T92 | Damex, Santiago de Cuba, Cuba | 18.12.2012 | in service (2019) | |||
| Los Roques | T93 | Damex, Santiago de Cuba, Cuba | 25.10.2013 | in service (2019) | |||
| Los Monjes | T94 | Damex, Santiago de Cuba, Cuba | 6.9.2014 | in service (2019) | |||
| Las Aves | T95 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Las Chimanas | T96 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Las Caracas | T97 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Las Picudas | T98 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Los Hermanos | T99 | Damen Ha Long, Vietnam | 2020 | building (2019) | |||
| Los Palanquines | T910 | Damen Ha Long, Vietnam | 2020 | building (2019) | |||
| Los Tortuguillos | T911 | Damen Ha Long, Vietnam | 2020 | building (2019) | |||
| Los Venades | T912 | Damen Ha Long, Vietnam | 2020 | building (2019) |
|
Displacement standard, t |
600 |
|
Displacement full, t |
740 |
|
Length, m |
57.3 |
|
Breadth, m |
12.0 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar C32 diesels |
|
Power, h. p. |
2230 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
none |
| Military load | 42 cargo containers, 220t fuel, 197t water |
|
Electronic equipment |
2x nav. radars |
|
Complement |
11 |
Project history: Damen Stan Lander 5612 design. Multipurpose transport and utility craft. Bow ramp and crane.
Modernizations: None.
Naval service: No significant events.

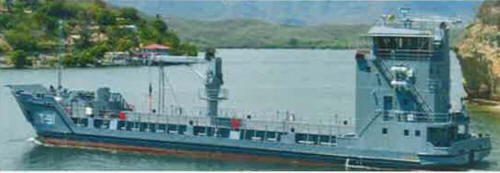

Los Frailes 2012
